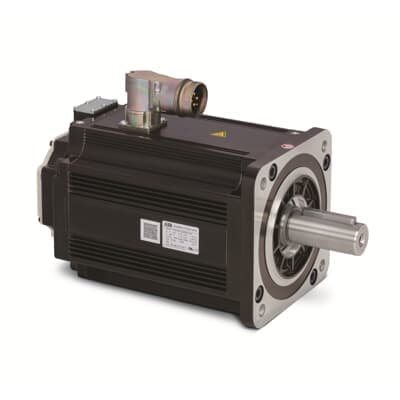

Product Model
HDS180C-2540BD4KBN
Selling Points
- 1High-performance servo motor with effective torque and inertia combinations.
- 2Equipped with various high-resolution feedback options for precise control.
- 3Ideal for demanding applications requiring precise and reliable operation.
- 4Designed for low-voltage applications with advanced distributor inventory management.
- 5Enhances machine efficiency and accuracy with its advanced servo technology.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
ABB Type Designation | HDS180C-2540BD4KBN | CN8 | 85044088 |
Country of Origin | China (CN) | Customs Tariff Number | 8501520000 |
Degree of Protection | IP54 | Flange Size Range | 180 mm |
Frame Size | A | Global Commercial Alias | HDS180C-2540BD4KBN |
Gross Weight | 30.2 kg | Input Voltage (Uin) | 400 V |
Invoice Description | HDS series motor, 400 VAC, flange size 180 mm, high inertia, 4 kW, multi-turn Hiperface, key, brake, no seal | Made To Order | No |
Maximum Peak Current | 48.8 A | Maximum Peak Torque | 75 N·m |
Maximum Speed | 3500 r/min | Minimum Order Quantity | 1 piece |
Motor Power AC-3 | 4 kW | Number of Phases | 3 |
Order Multiple | 1 piece | Package Level 1 Depth / Length | 520 mm |
Package Level 1 Height | 302 mm | Package Level 1 Units | 1 carton |
Package Level 1 Width | 265 mm | Product Name | HDS motor |
Product Net Depth / Length | 377 mm | Product Net Height | 240 mm |
Product Net Weight | 28.8 kg | Product Net Width | 180 mm |
Product Type | HDS_servo_motor | Quote Only | No |
Rated Output Current | 15.7 A | Rated Speed | 1500 r/min |
Rated Torque | 25 N·m | Replaced Product ID (OLD) | 3ABD00024309 |
Selling Unit of Measure | piece | Shaft Diameter | 35 mm |
Shaft Length | 80 mm | Short Description | HDS series motor, 400 VAC, flange size 180 mm, high inerita, 4 kW, multi-turn Hiperface, key, brake, no seal |
Stocked At (Warehouses) | Zhengzhou, China Beijing, China Shanghai, China Beijing, China | Two Speed Motor | No |
UNSPSC | 26101109 | WEEE B2C / B2B | Business To Business |
WEEE Category | Product Not in WEEE Scope | Manufacturer ID | 3ABD00047788 |
Specifications may be subject to change without notice
