Product Model

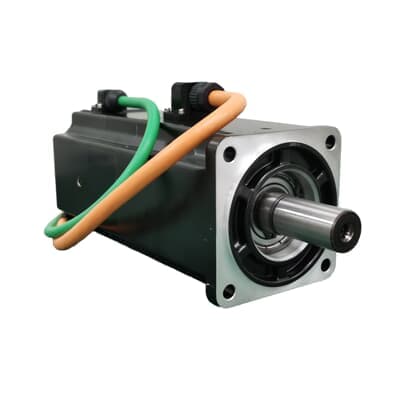

HDS6A-0102ASKBN
Selling Points
- 1High-performance servo motor with effective torque and inertia combinations.
- 2Equipped with high-resolution feedback for precise control.
- 3Secure payments through strict SSL encryption and PCI DSS data protection.
- 4Claim a refund for orders that don't ship, are missing, or arrive with product issues.
- 5Ideal for applications requiring precise speed control up to 6000 r/min.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
ABB Type Designation | HDS6A-0102ASKBN | CN8 | 85044088 |
Country of Origin | Finland (FI) | Customs Tariff Number | 8501520000 |
Degree of Protection | IP54 | Flange Size Range | 60 mm |
Frame Size | A | Global Commercial Alias | HDS6A-0102ASKBN |
Gross Weight | 2 kg | Input Voltage (Uin) | 230 V |
Invoice Description | HDS series motor, 230 VAC, flange size 60 mm, low inertia, 0.2 kW, 17-bit single-turn SmartABS, key, brake, no seal | Made To Order | No |
Maximum Peak Current | 5.1 A | Maximum Peak Torque | 2.23 N·m |
Maximum Speed | 6000 r/min | Minimum Order Quantity | 1 piece |
Motor Power AC-3 | 0.2 kW | Number of Phases | 3 |
Order Multiple | 1 piece | Package Level 1 Depth / Length | 230 mm |
Package Level 1 Height | 105 mm | Package Level 1 Units | 1 carton |
Package Level 1 Width | 105 mm | Product Name | HDS motor |
Product Net Depth / Length | 180 mm | Product Net Height | 81 mm |
Product Net Weight | 1.7 kg | Product Net Width | 60 mm |
Product Type | HDS_servo_motor | Quote Only | No |
Rated Output Current | 1.3 A | Rated Speed | 3000 r/min |
Rated Torque | 0.637 N·m | Replaced Product ID (OLD) | 3ABD00024309 |
Selling Unit of Measure | piece | Shaft Diameter | 14 mm |
Shaft Length | 30 mm | Short Description | HDS series motor, 230 VAC, flange size 60 mm, low inerita, 0.2 kW, 17-bit single-turn SmartABS, key, brake, no seal |
Stocked At (Warehouses) | Zhengzhou, China Beijing, China Shanghai, China Beijing, China | Two Speed Motor | No |
UNSPSC | 26101109 | WEEE B2C / B2B | Business To Business |
WEEE Category | Product Not in WEEE Scope | Manufacturer ID | 3ABD00049087 |
Specifications may be subject to change without notice
