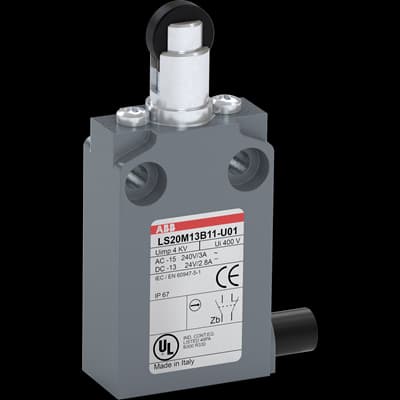

Product Model
LS20M13B11-U01
Selling Points
- 1Compact design with 30 mm width and 16 mm depth.
- 2Made of durable zinc alloy material (Zamak) for long-lasting performance.
- 3Pre-wired with a 1 m UL62 PVC cable for easy installation.
- 41 N.O + 1 N.C snap action (Zb type) contacts for reliable switching.
- 5IP67 protection ensures robust operation in harsh environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Width | 30 mm | Product Net Height | 70 mm |
Product Net Depth / Length | 16 mm | Product Net Weight | 0.181 kg |
Action Type of the Contact Element (acc. to IEC 60947-5-1) | Snap Action Simultaneous | Actuator Type | plastic roller plunger |
B10d Value | Operations 20 Millions | Conventional Free-air Thermal Current (Ith) | acc. to IEC 60947-5-1, Π= 40 °C 10 A |
Degree of Protection | acc. to IEC 60529 IP67 | Housing Material | Metal |
Maximum Electrical Switching Frequency | (AC-15) 3600 cycles per hour (DC-13) 3600 cycles per hour | Maximum Mounted Auxiliary Contacts | 1 NO, 1 NC |
Mechanical Durability | 10 million | Mounting Type | 30 mm |
Number and Type of Bottom Cable Glands | Side (Prewired UL/IEC cable) | Rated Impulse Withstand Voltage (Uimp) | 4 kV |
Rated Operational Current AC-15 (Ie) | (24 V) 10 A (130 V) 5.5 A (240 V) 3 A | Rated Insulation Voltage (Ui) | acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 400 V |
Rated Operational Current DC-13 (Ie) | (24 V) 2.8 A (125 V) 0.55 A (250 V) 0.27 A | Ambient Air Temperature | Operation -25 ... +70 °C Storage -40 ... +70 °C |
Object Classification Code | B | ETIM 6 | EC000030 - End switch |
ETIM 7 | EC000030 - End switch | ETIM 8 | EC000030 - End switch |
eClass | V11.0 : 27272601 | UNSPSC | 39121500 |
Manufacturer ID | 1SBV015513R2601 |
