Product Model

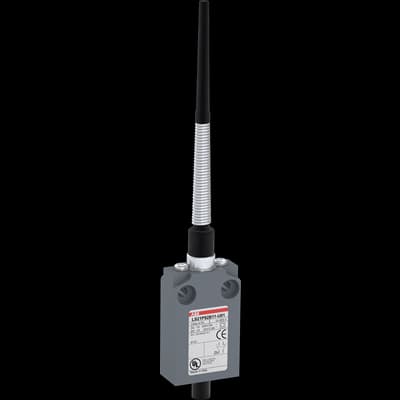

LS21P92B11-U01
Selling Points
- 1Precise operating points ensure consistent performance.
- 2Immune to electromagnetic disturbances for reliable operation.
- 3Made of fiber-glass reinforced UL-V0 material for durability.
- 4Operates in ambient air temperatures from -25°C to +70°C.
- 5Meets EU Directive 2002/95/EC and international standards for safety and quality.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Width | 30 mm | Product Net Height | 162 mm |
Product Net Depth / Length | 16 mm | Product Net Weight | 0.132 kg |
Action Type of the Contact Element (acc. to IEC 60947-5-1) | Snap Action Simultaneous | Actuator Type | multidirectional stainless steel spring with insulated tip |
B10d Value | Operations 20 Millions | Conventional Free-air Thermal Current (Ith) | acc. to IEC 60947-5-1, Π= 40 °C 10 A |
Degree of Protection | acc. to IEC 60529 IP67 | Housing Material | Plastic |
Maximum Electrical Switching Frequency | (AC-15) 3600 cycles per hour (DC-13) 3600 cycles per hour | Maximum Mounted Auxiliary Contacts | 1 NO, 1 NC |
Mechanical Durability | 10 million | Mounting Type | 30 mm |
Number and Type of Bottom Cable Glands | Bottom (Prewired UL/IEC cable) | Rated Impulse Withstand Voltage (Uimp) | 4 kV |
Rated Operational Current AC-15 (Ie) | (24 V) 10 A (130 V) 5.5 A (240 V) 3 A | Rated Insulation Voltage (Ui) | acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 400 V |
Rated Operational Current DC-13 (Ie) | (24 V) 2.8 A (125 V) 0.55 A (250 V) 0.27 A | Ambient Air Temperature | Operation -25 ... +70 °C Storage -40 ... +70 °C |
Object Classification Code | B | ETIM 6 | EC000030 - End switch |
ETIM 7 | EC000030 - End switch | ETIM 8 | EC000030 - End switch |
eClass | V11.0 : 27272601 | UNSPSC | 39122213 |
IDEA Granular Category Code (IGCC) | 5202 >> Limit switch | Manufacturer ID | 1SBV016092R3801 |
Specifications may be subject to change without notice
