ABBTravel switch
Product Model

LS33P92B11

Manufacturer

ABB

Category

Travel switch

Product ID

75891

In Stock
Last updated: 2025/4/17
View Specifications

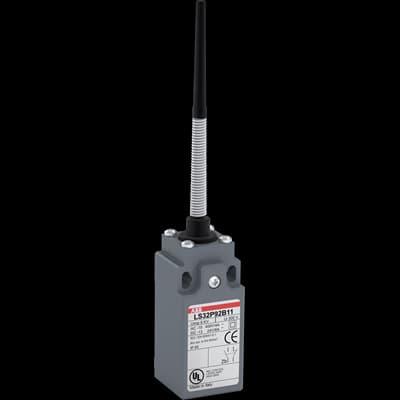

ABB LS33P92B11

Selling Points

  • 1Made of fiber-glass reinforced UL-V0 material for high durability and resistance.
  • 2Multidirectional stainless steel spring actuator with insulated tip for precise operation.
  • 31 N.O + 1 N.C snap action contacts for reliable switching.
  • 4Compact design with 30 mm width and 168 mm height for easy mounting.
  • 5IP67 protection ensures reliable operation in harsh environments.
Product Details
LS33P92B11
ABB

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Product Net Width
30 mm
Product Net Height
168 mm
Product Net Depth / Length
30 mm
Product Net Weight
0.071 kg
Action Type of the Contact Element (acc. to IEC 60947-5-1)
Snap Action Simultaneous
Actuator Type
multidirectional stainless steel spring with insulated tip
B10d Value
Operations 30 Millions
Conventional Free-air Thermal Current (Ith)
acc. to IEC 60947-5-1, Θ = 40 °C 10 A
Degree of Protection
acc. to IEC 60529 IP65
Housing Material
Plastic
Maximum Electrical Switching Frequency
(AC-15) 3600 cycles per hour (DC-13) 3600 cycles per hour
Maximum Mounted Auxiliary Contacts
1 NO, 1 NC
Mechanical Durability
>5 million
Mounting Type
30 mm (EN 50047)
Number and Type of Bottom Cable Glands
1 x M20x1.5 - Bottom
Pilot Duty UL/CSA
A600 Q600
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Operational Current AC-15 (Ie)
(230 V AC) 3.1 A (400 V) NC 4 (24 V) 10 A (130 V) 5.5 A (240 V) 3 A
Rated Insulation Voltage (Ui)
acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 500 V acc. to UL/CSA 600 V
Rated Operational Current DC-13 (Ie)
(24 V) 6 A (110 V) 0.6 A (125 V) 0.55 A (250 V) 0.4 A
Short-Circuit Protective Devices
gG Type Fuses 10 A
Ambient Air Temperature
Operation -25 ... +70 °C Storage -30 ... +80 °C
Object Classification Code
B
ETIM 6
EC000030 - End switch
ETIM 7
EC000030 - End switch
ETIM 8
EC000030 - End switch
eClass
V11.0 : 27272601
UNSPSC
39121500
Manufacturer ID
1SBV012292R1211

Specifications may be subject to change without notice
