Product Model

LS35M51B11

In Stock
Last updated: 2025/4/25

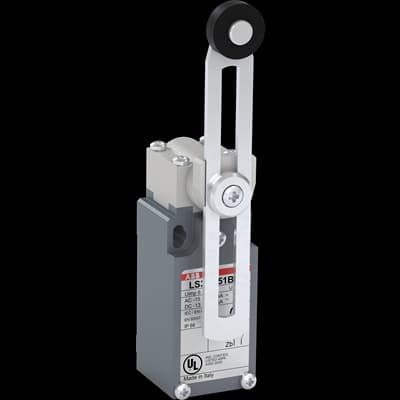

ABB LS35M51B11

Selling Points

  • 1Consistent detection with precise operating points.
  • 2Immune to electromagnetic disturbances for reliable operation.
  • 3Easy adjustment with an adjustable roller lever actuator.
  • 4Supports 10 A at 24 V contact rating for strong current handling.
  • 5Made of zinc alloy with IP66 protection for harsh environments.
Product Details
LS35M51B11
ABB

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Product Net Width
30 mm
Product Net Height
100 mm
Product Net Depth / Length
46 mm
Product Net Weight
0.188 kg
Action Type of the Contact Element (acc. to IEC 60947-5-1)
Snap Action Simultaneous
Actuator Type
adjustable plastic roller lever (Ø18 mm)
B10d Value
Operations 30 Millions
Conventional Free-air Thermal Current (Ith)
acc. to IEC 60947-5-1, Θ = 40 °C 10 A
Degree of Protection
acc. to IEC 60529 IP66
Housing Material
Metal
Maximum Electrical Switching Frequency
(AC-15) 3600 cycles per hour (DC-13) 3600 cycles per hour
Maximum Mounted Auxiliary Contacts
1 NO, 1 NC
Mechanical Durability
10 million
Mounting Type
30 mm (EN 50047)
Number and Type of Bottom Cable Glands
1 x 1/2'' NPT - Bottom
Pilot Duty UL/CSA
A600 Q600
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Operational Current AC-15 (Ie)
(230 V AC) 3.1 A (400 V) NC 4 (24 V) 10 A (130 V) 5.5 A (240 V) 3 A
Rated Insulation Voltage (Ui)
acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 500 V acc. to UL/CSA 600 V
Rated Operational Current DC-13 (Ie)
(24 V) 6 A (110 V) 0.6 A (125 V) 0.55 A (250 V) 0.4 A
Short-Circuit Protective Devices
gG Type Fuses 10 A
Ambient Air Temperature
Operation -25 ... +70 °C Storage -30 ... +80 °C
Object Classification Code
B
ETIM 6
EC000030 - End switch
ETIM 7
EC000030 - End switch
ETIM 8
EC000030 - End switch
eClass
V11.0 : 27272601
UNSPSC
39122213
IDEA Granular Category Code (IGCC)
5202 >> Limit switch
Manufacturer ID
1SBV013751R1211

Specifications may be subject to change without notice
