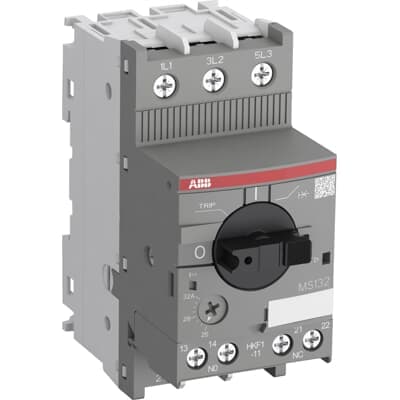

Product Model
MS132-32-HKF1-11
Selling Points
- 1Compact design with a width of 45 mm, ideal for space-saving installations.
- 2Rated operational current of 32 A, suitable for various motor applications.
- 3Pre-assembled front-mounted auxiliary contact HKF1-11 for enhanced functionality.
- 4Built-in disconnect function and temperature compensation for reliable operation.
- 5Trip class 10 and rated service short-circuit breaking capacity of 30 kA at 400 VAC.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Width | 45 mm | Product Net Height | 97.8 mm |
Product Net Depth / Length | 86.55 mm | Product Net Weight | 0.326 kg |
Rated Service Short-Circuit Breaking Capacity (Ics) | (230 V AC) 30 kA (250 V DC) 3 Poles in Series 10 kA (400 V AC) 30 kA (440 V AC) 30 kA (500 V AC) 10 kA (690 V AC) 3 kA | Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (230 V AC) 50 kA (400 V AC) 50 kA (440 V AC) 30 kA (500 V AC) 10 kA (690 V AC) 3 kA |
Rated Instantaneous Short-Circuit Current Setting (Ii) | 480 A | Setting Range | 25 ... 32 A |
Rated Operational Power AC-3 (Pe) | (400 V) Three Phase 15 kW | Rated Operational Power AC-3e (Pe) | (400 V) Three Phase 15 kW |
Rated Operational Voltage | Main Circuit 690 V AC Main Circuit 250 V DC | Rated Operational Current (Ie) | 32 A |
Rated Operational Current AC-3 (Ie) | 32 A | Rated Operational Current AC-3e (Ie) | 32 A |
Rated Operational Current DC-5 (Ie) | 32 A | Rated Frequency (f) | Main Circuit 50 Hz Main Circuit 60 Hz |
Operating Frequency (fsw) | 0 ... 400 Hz | Rated Impulse Withstand Voltage (Uimp) | Main Circuit 6 kV |
Rated Insulation Voltage (Ui) | 690 V | Power Loss | at Rated Operating Conditions per Pole 1.9 ... 3.1 W |
Number of Poles | 3 | Mounted Auxiliary Contacts | 1 NO, 1 NC |
Conventional Free-air Thermal Current (Ith) | Main Circuit 32 A | Degree of Protection | Housing IP20 Main Circuit Terminals IP10 |
Pollution Degree | 3 | Electrical Durability | 50000 cycle |
Mechanical Durability | 100000 cycle | Terminal Type | Screw Terminals |
Connecting Capacity Main Circuit | Flexible with Ferrule 1/2x 0.75 ... 6 mm² Flexible with Insulated Ferrule 1/2x 0.75 ... 6 mm² Flexible 1/2x 1 ... 2.5 mm² Flexible 1/2x 2.5 ... 6 mm² Rigid 1/2x 1 ... 2.5 mm² Rigid 1/2x 2.5 ... 6 mm² | Connecting Capacity Auxiliary Circuit | Flexible with Ferrule 1/2x 0.75 ... 1.5 mm² Flexible with Insulated Ferrule 1/2x 0.75 ... 1.5 mm² Flexible 1/2x 0.75 ... 1.5 mm² Rigid 1/2x 1 ... 1.5 mm² |
Tightening Torque | Auxiliary Circuit 0.8 ... 1.2 N·m Main Circuit 2 N·m | Wire Stripping Length | Auxiliary Circuit 8 mm Main Circuit 10 mm |
Recommended Screw Driver | Pozidriv 2 | Mounting Position | 1 ... 6 |
Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 | Minimum Mounting Distance | Electrical Conductive Board, Horizontal - Up to 400 V 0 mm Electrical Conductive Board, Horizontal - Up to 690 V 1.5 mm Electrical Conductive Board, Vertical 75 mm Other Device Same Type, Horizontal 0 mm Other Device Same Type, Vertical 150 mm |
Actuator Type | Rotary Handle | Contact Position Indication | ON / OFF / TRIP |
Standards | IEC/EN 60947-1 IEC/EN 60947-2 IEC/EN 60947-4-1 IEC/EN 60947-5-1 UL 60947-1 UL 60947-4-1 IEC 60335-2-40 A2L | Remarks | UL508 Self-Protected Combination Motor Controller (Type E) in combination with feeder block S1-M3-xx |
Short-Circuit Current Rating (SCCR) | Manual Self-Protected Combination Controllers (Type E), (480Y / 277 V AC) 30 kA Any UL Listed Fuses or Circuit-Breakers, Group Installations (480 V AC) 35 kA Any UL Listed Fuses or Circuit-Breakers, Group Installations (600 V AC) 35 kA Any UL Listed Fuses or Circuit-Breakers, Motor Disconnect (480 V AC) 30 kA Any UL Listed Fuses or Circuit-Breakers, Motor Disconnect (600 V AC) 18 kA Any UL Listed Fuses or Circuit-Breakers, Tap Conductor Protection in Group Installations (480Y / 277 V AC) 30 kA Any UL Listed Fuses or Circuit-Breakers, Tap Conductor Protection in Group Installations (600Y / 347 V AC) 18 kA | Maximum Operating Voltage UL/CSA | Auxiliary Circuit 250 V AC/DC Main Circuit 600 V AC |
Horsepower Rating UL/CSA | (200 V AC) Three Phase 7.5 Hp (208 V AC) Three Phase 10 Hp (220 ... 240 V AC) Three Phase 10 Hp (440 ... 480 V AC) Three Phase 20 Hp (550 ... 600 V AC) Three Phase 25 Hp | Full Load Amps Motor Use | (200 V AC) Three Phase 25.3 A (208 V AC) Three Phase 30.8 A (220 ... 240 V AC) Three Phase 28 A (440 ... 480 V AC) Three Phase 27 A (550 ... 600 V AC) Three Phase 27 A |
Locked Rotor Amps | (200 V AC) Three Phase 146 A (208 V AC) Three Phase 179 A (220 ... 240 V AC) Three Phase 162 A (440 ... 480 V AC) Three Phase 145 A (550 ... 600 V AC) Three Phase 146 A | General Use Rating UL/CSA | (600 V AC) 32 A |
Connecting Capacity Main Circuit UL/CSA | Flexible 1/2x 16-8 AWG Stranded 1/2x 16-8 AWG | Connecting Capacity Auxiliary Circuit UL/CSA | Flexible 1/2x 16-14 AWG Stranded 1/2x 16-14 AWG |
Tightening Torque UL/CSA | Auxiliary Circuit 7 in·lb Main Circuit 18 in·lb | Contact Rating UL/CSA | B300 R300 |
Ambient Air Temperature | Around the Enclosure 0 ... +40 °C Operation -25 ... +70 °C Operation Compensated -25 ... +60 °C Storage -50 ... +80 °C | Ambient Air Temperature Compensation | Yes |
Maximum Operating Altitude Permissible | 2000 m | Resistance to Shock acc. to IEC 60068-2-27 | 11 ms Pulse 25g |
Resistance to Vibrations | 5g 3 ... 150 Hz | Object Classification Code | F |
ETIM 4 | EC000074 - Motor protective circuit-breaker | ETIM 5 | EC000074 - Motor protective circuit-breaker |
ETIM 6 | EC000074 - Motor protection circuit-breaker | ETIM 7 | EC000074 - Motor protection circuit-breaker |
ETIM 8 | EC000074 - Motor protection circuit-breaker | eClass | V11.0 : 27370401 |
UNSPSC | 39121521 | IDEA Granular Category Code (IGCC) | 4845 >> 3 Pole Motor Circuit Protector Circuit Breakers |
E-Number (Finland) | 3705947 | Manufacturer ID | 1SAM350005R1015 |
