Product Model

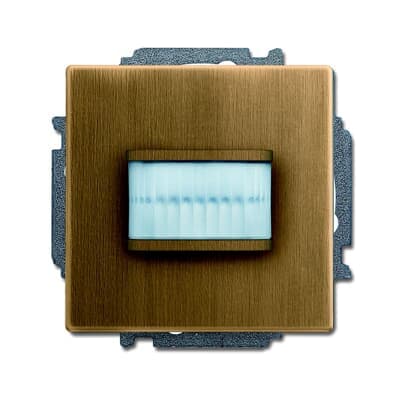

MSA-F-1.1.1-840
Selling Points
- 1Automatically switches ABB-free@home® actuators based on movement and brightness.
- 2Compatible with select lenses for detection with animal access.
- 3Ideal for smart home automation systems.
- 4Easy integration with 230 V AC devices.
- 5Enhances home security and energy efficiency.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Ambient Air Temperature | Operation -5 ... +45 °C | Degree of Protection | IP20 |
Data Sheet, Technical Information | 2CKA001373B8558 | Number of Outputs | 1 |
Number of Channels | 1 | Compatible Bus Systems | free@home (TP) |
Product Range | free@home | Minimum Switching Time | Switch-On 30 second [unit of time] |
Sensor Detection Range | Horizontal 180...180 ° Vertical 19...19 ° | Product Net Width | 71 mm |
Product Net Height | 71 mm | Product Net Depth / Length | 56 mm |
Product Net Weight | 100 g | Built-In Depth (t2) | 32 mm |
ETIM 9 | EC001582 - Movement sensor for bus system | eClass | V11.0 : 27143144 |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | WEEE B2C / B2B | Business To Consumer |
Manufacturer ID | 2CKA006220A0386 |
Specifications may be subject to change without notice
