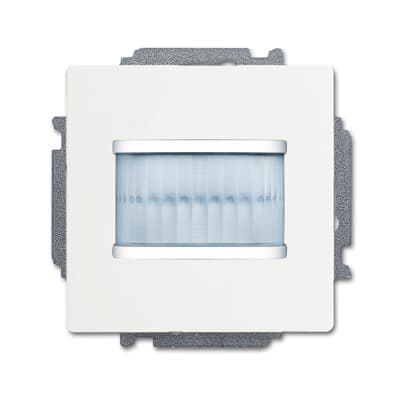

Product Model
MSA-F-1.1.1-884
Selling Points
- 1Advanced Movement Detection: Detects movement up to 6 meters frontally and 3 meters sideways.
- 2Stainless Steel Finish: Durable and stylish stainless steel color for a modern look.
- 3Adjustable Luminosity Response: Customizable to your lighting needs with adjustable luminosity settings.
- 4Flush Mounting: Easy installation with flush mounting method suitable for plaster surfaces.
- 5Staircase Monitoring: Perfect for monitoring staircases with its wide detection angle of 180 degrees.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Ambient Air Temperature | Operation -5 ... +45 °C | Degree of Protection | IP20 |
Number of Outputs | 1 | Number of Channels | 1 |
Compatible Bus Systems | free@home (TP) | Product Range | free@home |
Minimum Switching Time | Switch-On 30 second [unit of time] | Sensor Detection Range | Horizontal 180...180 ° Vertical 19...19 ° |
Product Net Width | 71 mm | Product Net Height | 71 mm |
Product Net Depth / Length | 56 mm | Product Net Weight | 100 g |
Built-In Depth (t2) | 32 mm | ETIM 9 | EC001582 - Movement sensor for bus system |
eClass | V11.0 : 27143144 | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
WEEE B2C / B2B | Business To Consumer | Manufacturer ID | 2CKA006220A0616 |
Specifications may be subject to change without notice
