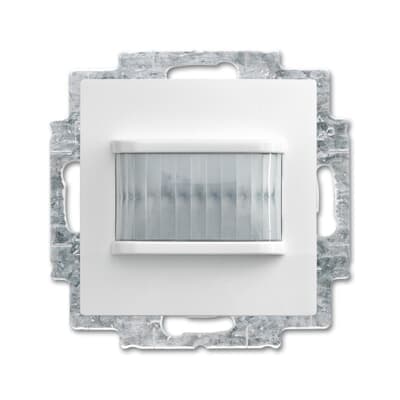

Product Model
MSA-F-1.1.1-94
Selling Points
- 1Automatically switches ABB-free@home actuators based on movement and brightness.
- 2Select lens for detection with animal access.
- 3Programmable switch-off delay via web interface.
- 4Compatible with 127 V~/230 V~ consumers.
- 5Integrated switch actuator with pre-configured switching function.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Ambient Air Temperature | Operation -5 ... +45 °C | Degree of Protection | IP20 |
Number of Outputs | 1 | Number of Channels | 1 |
Compatible Bus Systems | free@home (TP) | Product Range | free@home |
Minimum Switching Time | Switch-On 30 second [unit of time] | Sensor Detection Range | Horizontal 180...180 ° Vertical 19...19 ° |
Product Net Width | 70.9 mm | Product Net Height | 52.6 mm |
Product Net Depth / Length | 70.9 mm | Product Net Weight | 0.18 kg |
Built-In Depth (t2) | 32 mm | ETIM 9 | EC001582 - Movement sensor for bus system |
eClass | V11.0 : 27143144 | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
WEEE B2C / B2B | Business To Consumer | Manufacturer ID | 2CKA006220A0684 |
Specifications may be subject to change without notice
