Product Model

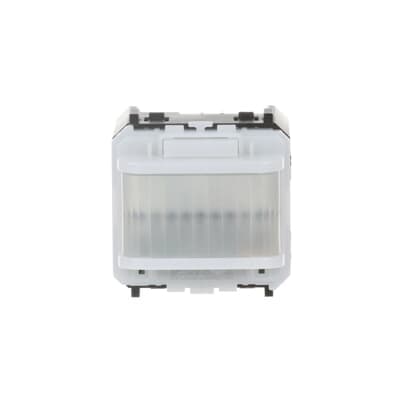

MSA-F-1.1.1-WL
Selling Points
- 1Advanced Detection: Detects movement and brightness with select lens for animal access.
- 2Wireless Communication: Seamlessly integrates with the ABB-free@home system via wireless communication.
- 3Automatic Switching: Automatically switches actuators dependent on movement and brightness.
- 4Programmable Delay: Switch-off delay can be programmed via the web interface of the System Access Point.
- 5Pre-configured Switching: Switching function available without prior programming, pre-configured for immediate use.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Ambient Air Temperature | Operation -5 ... +45 °C | Degree of Protection | IP20 |
Number of Outputs | 1 | Number of Channels | 1 |
Compatible Bus Systems | free@home (TP) | Product Range | free@home |
Minimum Switching Time | Switch-On 30 second [unit of time] | Sensor Detection Range | Horizontal 180...180 ° Vertical 19...19 ° |
Product Net Width | 44.2 mm | Product Net Height | 47.1 mm |
Product Net Depth / Length | 46 mm | Product Net Weight | 103 g |
Built-In Depth (t2) | 32 mm | ETIM 9 | EC001582 - Movement sensor for bus system |
eClass | V11.0 : 27143144 | UNSPSC | 39121801 |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | WEEE B2C / B2B | Business To Consumer |
Manufacturer ID | 2CKA006200A0117 |
Specifications may be subject to change without notice
