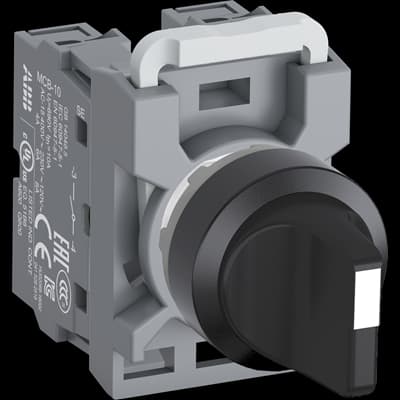

Product Model
MSS9-1035
Selling Points
- 1Designed for precise automation, ensuring consistent performance.
- 2Comprehensive protection for your investment.
- 3Conveniently delivered to any location globally.
- 4Safe and secure transaction process.
- 5Hassle-free return policy for your peace of mind.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Width | 0.03 m | Product Net Height | 0.048 m |
Product Net Depth / Length | 0.078 m | Product Net Weight | 0.046 kg |
Ambient Air Temperature | Operation -25 ... +70 °C Storage -40 ... +85 °C | Bezel Material | Black Plastic |
Illumination | Non-illuminated | Function | 3-Pos Maintained/Momentary, A and B fixed, spring return from C to B |
Sub-Function | 3-position | Maintained Positions | A, B |
Number of Auxiliary Contacts NC | 1 | Number of Auxiliary Contacts NO | 1 |
Enclosure Type NEMA | Type1 Type12 Type13 Type3R Type4 Type4X | Pollution Degree | 3 |
Rated Insulation Voltage (Ui) | 690 V | Rated Impulse Withstand Voltage (Uimp) | 6 kV |
Rated Frequency (f) | 50 / 60 Hz | Rated Operational Voltage | Maximum 690 V |
Rated Operational Current DC-13 (Ie) | (24 V) 5 A | Rated Operational Current AC-15 (Ie) | (230 V AC) 6 A (120 V) 8 A |
Power Loss | Maximum 5 W | Connecting Capacity | Flexible with Ferrule 1 x 0.75...2.5 mm² Flexible with Ferrule 2 x 0.75...2.5 mm² Flexible with Insulated Ferrule 1 x 0.75...2.5 mm² Flexible with Insulated Ferrule 2 x 0.75...2.5 mm² Flexible 1 x 0.75 ... 2.5 mm² Flexible 2 x 0.75 ... 2.5 mm² Solid 1 x 0.75...2.5 mm² Solid 2 x 0.75...2.5 mm² |
Connection Type | Screw Clamp | Terminal Type | Screw Terminals |
Tightening Torque | 0.9 N·m | Wire Stripping Length | 8 mm |
Connecting Capacity UL/CSA | 1x 18...14 AWG 2x 18...14 AWG | Degree of Protection | Front IP66 Terminals IP20 |
ETIM 6 | EC000222 - Front element for selector switch | ETIM 7 | EC001029 - Selector switch, complete |
ETIM 8 | EC001029 - Selector switch, complete | eClass | V11.0 : 27371243 |
UNSPSC | 39121500 | Manufacturer ID | 1SFA611299R1035 |
Specifications may be subject to change without notice
