ABBFuse protector
Product Model

OS1250B03

Manufacturer

ABB

Category

Fuse protector

Product ID

75460

In Stock
Last updated: 2025/4/17
View Specifications

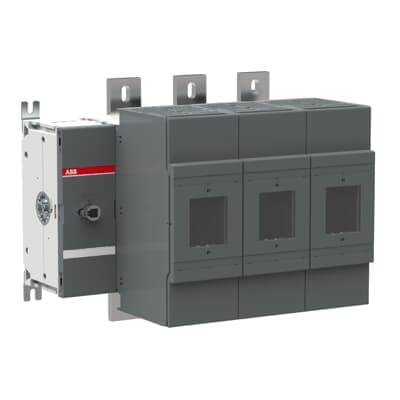

ABB OS1250B03

Selling Points

  • 1High Voltage Rating: Rated impulse withstand voltage of 12 kilovolts for extreme conditions.
  • 2Safety Features: Double insulated external operating handle to prevent live part contact.
  • 3Compact Design: Robust plastic frame with excellent mechanical and thermal properties.
  • 4Flexibility in Installation: Adjustable mounting feet for top and side mounting options.
  • 5Compliance with Standards: Meets IEC 60947-3 standards and is compatible with OS/OESA systems.
Product Details
OS1250B03
ABB

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Pollution Degree
3
Product Net Width
429 mm
Product Net Height
356 mm
Product Net Depth / Length
294 mm
Product Net Weight
28.11 kg 61.97 lb
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 1250 A
Conventional Thermal Current (Ithe)
Fully Enclosed 1000 A
Fuse Size
D1
Fuse System
British Standard
Handle Type
Handle and shaft not included
Mounting Type
Base mounting
Number of Poles
3
Operating Mode
Front Operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 75 W
Rated Conditional Short-Circuit Current (Inc)
(690 V) 80 kA
Rated Current (In)
Main Circuit 1250 A
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
1000 V
Rated Operational Current AC-21A (Ie)
(380 ... 415 V) 1250 A (500 V) 1250 A (690 V) 1250 A
Rated Operational Current AC-21B (Ie)
(500 V) 1250 A (690 V) 1250 A
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 1250 A
Rated Operational Current AC-22B (Ie)
(500 V) 1250 A (690 V) 1250 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 1000 A
Rated Operational Current AC-23B (Ie)
(500 V) 1000 A (690 V) 1000 A
Rated Operational Power AC-23A (Pe)
(220 ... 240 V) 315 kW (400 V) 560 kW (415 V) 560 kW (500 V) 710 kW (690 V) 1000 kW
Rated Operational Voltage
Main Circuit 690 V AC
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 40 kiloampere rms
Standards
IEC 60947-3
Switches Operating Mechanism
03 (Left Side)
Terminal Type
Lug terminals
Terminal Width
50 mm
Tightening Torque
50 ... 75 N·m
Tightening Torque
50 ... 75 N·m
Object Classification Code
Q
ETIM 8
EC001040 - Fuse switch disconnector
ETIM 9
EC001040 - Fuse switch disconnector
UNSPSC
39122233
IDEA Granular Category Code (IGCC)
5291 >> Fuse switch disconnector
eClass
V11.1 : 27371401
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Manufacturer ID
1SCA105249R1001

Specifications may be subject to change without notice
