ABBFuse protector
Product Model

OS1250B03N3P

Manufacturer

ABB

Category

Fuse protector

Product ID

74148

In Stock
Last updated: 2025/4/18
View Specifications

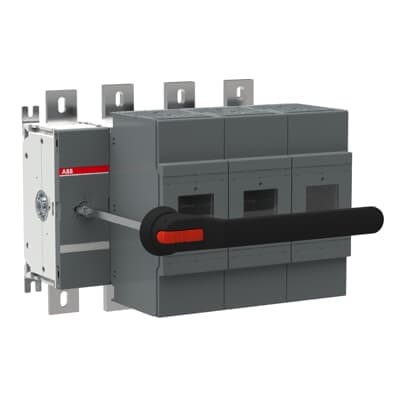

ABB OS1250B03N3P

Selling Points

  • 1High-rated current of 1250 A for efficient power distribution.
  • 2Robust insulation with a rated insulation voltage of 1000 V for enhanced safety.
  • 3Compact design for easy installation in smaller enclosures, saving space and installation time.
  • 4Front-operated mechanism with a detachable neutral link integrated into the mechanism for user convenience.
  • 5Compliance with IEC 60947-3 standards for high reliability and performance in heavy industry applications.
Product Details
OS1250B03N3P
ABB

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Pollution Degree
3
Product Net Width
429 mm
Product Net Height
356 mm
Product Net Depth / Length
366 mm
Product Net Weight
30.21 kg 66.6 lb
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 1250 A
Conventional Thermal Current (Ithe)
Fully Enclosed 1000 A
Fourth Pole Type
Detachable Neutral Link Integrated Into the Mechanism
Fuse Size
D1
Fuse System
British Standard
Handle Type
Pistol handle and shaft included
Mounting Type
Base mounting
Number of Poles
3
Operating Mode
Front Operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 75 W
Rated Conditional Short-Circuit Current (Inc)
(690 V) 80 kA
Rated Current (In)
Main Circuit 1250 A
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
1000 V
Rated Operational Current AC-21A (Ie)
(380 ... 415 V) 1250 A (500 V) 1250 A (690 V) 1250 A
Rated Operational Current AC-21B (Ie)
(500 V) 1250 A (690 V) 1250 A
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 1250 A
Rated Operational Current AC-22B (Ie)
(500 V) 1250 A (690 V) 1250 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 1000 A
Rated Operational Current AC-23B (Ie)
(500 V) 1000 A (690 V) 1000 A
Rated Operational Power AC-23A (Pe)
(220 ... 240 V) 315 kW (400 V) 560 kW (415 V) 560 kW (500 V) 710 kW (690 V) 1000 kW
Rated Operational Voltage
Main Circuit 690 V AC
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 40 kiloampere rms
Special Functions
Detachable Neutral
Standards
IEC 60947-3
Switches Operating Mechanism
03 (Left Side)
Terminal Type
Lug terminals
Terminal Width
50 mm
Tightening Torque
50 ... 75 N·m
Tightening Torque
50 ... 75 N·m
Object Classification Code
Q
ETIM 8
EC001040 - Fuse switch disconnector
ETIM 9
EC001040 - Fuse switch disconnector
UNSPSC
39122233
IDEA Granular Category Code (IGCC)
5291 >> Fuse switch disconnector
eClass
V11.1 : 27371401
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)
3661014
Manufacturer ID
1SCA107936R1001

Specifications may be subject to change without notice
