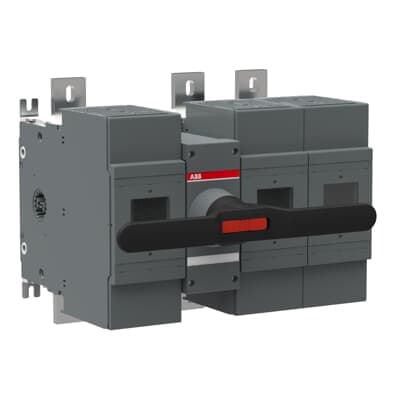

Product Model
OS1250D12K
Selling Points
- 1High Current Capacity: Handles up to 1250 Amperes for comprehensive electrical protection.
- 2Versatile Fuse Types: Compatible with DIN, BS, NFC, CC, JJ, and L types of fuses.
- 3Compact Design: Net dimensions of 365 mm width, 429 mm height, and 356 mm length.
- 4Durable Construction: Constructed with high-quality materials for long-lasting performance.
- 5Easy Installation: Designed for straightforward integration into your electrical setup.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Width | 365 mm | Product Net Height | 429 mm |
Product Net Depth / Length | 356 mm | Product Net Weight | 29.2 kg |
Fuse Size | NH4 | Fuse System | DIN |
Mounting Type | Base mounting | Number of Poles | 3 |
Operating Mode | Front Operated | Power Loss | at Rated Operating Conditions per Pole 75 W |
Rated Operational Voltage | Main Circuit 690 V AC | Standards | IEC 60947-3 |
Terminal Type | Lug terminals | Tightening Torque | 50 ... 75 N·m |
Tightening Torque | 50 ... 75 N·m | Object Classification Code | Q |
ETIM 8 | EC001040 - Fuse switch disconnector | ETIM 9 | EC001040 - Fuse switch disconnector |
UNSPSC | 39122233 | IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
eClass | V11.1 : 27371392 | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
Manufacturer ID | 1SCA149908R1001 |
Specifications may be subject to change without notice
