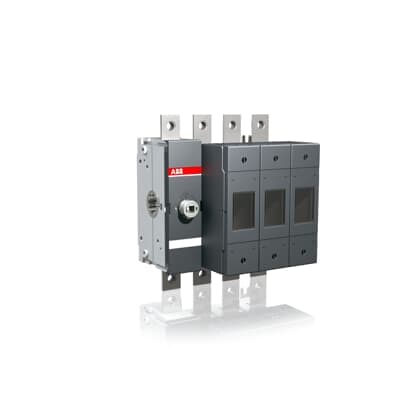

Product Model
OS125GB03N3-42
Selling Points
- 1Engineered for heavy industry with world-class performance.
- 2Includes a detachable neutral link integrated into the mechanism.
- 3Easy to operate with a front-operated mechanism.
- 4Interlocking fuse covers prevent opening while the switch is in “ON” position.
- 5Easy and cost-efficient installation, maintenance, and use with adjustable shaft and mounting feet.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Pollution Degree | 3 | Product Net Width | 147 mm |
Product Net Height | 140 mm | Product Net Depth / Length | 115 mm |
Product Net Weight | 1.5 kg | Conventional Free-air Thermal Current (Ith) | Π= 40 °C 125 A |
Conventional Thermal Current (Ithe) | Fully Enclosed 125 A | Fourth Pole Type | Detachable Neutral Link Integrated Into the Mechanism |
Fuse Size | A2-A4 | Fuse System | British Standard |
Handle Type | Handle and shaft not included | Mounting Type | Base mounting |
Number of Poles | 3+N | Operating Mode | Front Operated |
Pollution Degree | 3 | Position of Line Terminals | Top In - Bottom Out Bottom In - Top Out |
Power Loss | at Rated Operating Conditions per Pole 4 W | Rated Conditional Short-Circuit Current (Inc) | (690 V) 80 kA |
Rated Current (In) | Main Circuit 125 A | Rated Impulse Withstand Voltage (Uimp) | 8 kV |
Rated Insulation Voltage (Ui) | 1000 V | Rated Operational Current AC-21A (Ie) | (500 V) 125 A (690 V) 125 A |
Rated Operational Current AC-22A (Ie) | (500 V) 125 A (690 V) 125 A | Rated Operational Current AC-23A (Ie) | (500 V) 125 A (690 V) 125 A |
Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 37 kW (400 V) 55 kW (415 V) 55 kW (500 V) 75 kW (690 V) 110 kW | Rated Operational Voltage | Main Circuit 690 V AC |
Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 5 kiloampere rms | Special Functions | Detachable Neutral |
Standards | IEC 60947-3 | Switches Operating Mechanism | 03 (Left Side) |
Terminal Type | Lug terminals | Terminal Width | 20 mm |
Tightening Torque | 15 ⦠22 N·m | Tightening Torque | 15 ⦠22 N·m |
Object Classification Code | Q | ETIM 8 | EC001040 - Fuse switch disconnector |
ETIM 9 | EC001040 - Fuse switch disconnector | UNSPSC | 39122233 |
IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector | eClass | V11.1 : 27371401 |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Manufacturer ID | 1SCA129911R1001 |
Specifications may be subject to change without notice
