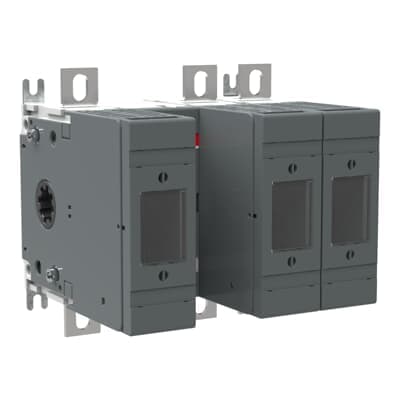

Product Model
OS125GD12/B126
Selling Points
- 1High-performance electrical control with 3-pole, 125A rating.
- 2Front-operated mechanism for easy operation and maintenance.
- 3DIN rail mounting for versatile installation options.
- 4Compliant with IEC 60947-3 standards for reliability and safety.
- 5Ideal for applications requiring high current handling and precise control.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Weight | 232 kg | Fuse Size | NH000 NH00 |
Fuse System | DIN | Mounting Type | Base mounting |
Number of Poles | 3 | Operating Mode | Front Operated |
Power Loss | at Rated Operating Conditions per Pole 4 W | Rated Operational Voltage | Main Circuit 690 V AC |
Standards | IEC 60947-3 | Terminal Type | Lug terminals |
Tightening Torque | 15 ... 22 N·m | Tightening Torque | 15 ... 22 N·m |
ETIM 8 | EC001040 - Fuse switch disconnector | ETIM 9 | EC001040 - Fuse switch disconnector |
UNSPSC | 39122233 | IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Manufacturer ID | 1SCA156570R1001 |
Specifications may be subject to change without notice
