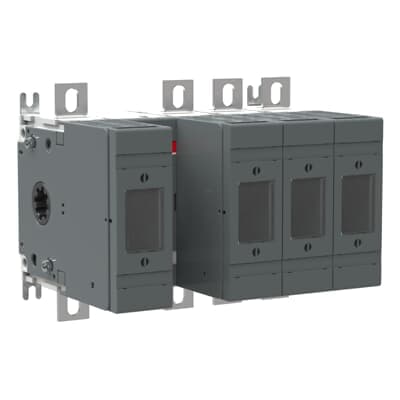

Product Model
OS125GD13N2
Selling Points
- 1Reliable 125A switch disconnector fuse for efficient electrical operations.
- 2Front-operated, 4-pole with neutral pole on the right side for easy handling.
- 3Class DIN design ensures high-quality and durable performance.
- 4Ideal for applications requiring precise control and safety in electrical systems.
- 5Compatible with various low-voltage electrical systems for versatile use.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Width | 130 mm | Product Net Height | 183 mm |
Product Net Depth / Length | 140 mm | Product Net Weight | 2.4 kg |
Fuse Size | NH000 NH00 | Fuse System | DIN |
Mounting Type | Base mounting | Number of Poles | 4 |
Operating Mode | Front Operated | Power Loss | at Rated Operating Conditions per Pole 4 W |
Rated Operational Voltage | Main Circuit 690 V AC | Standards | IEC 60947-3 |
Terminal Type | Lug terminals | Tightening Torque | 15 ... 22 N·m |
Tightening Torque | 15 ... 22 N·m | Object Classification Code | Q |
ETIM 8 | EC001040 - Fuse switch disconnector | ETIM 9 | EC001040 - Fuse switch disconnector |
UNSPSC | 39122233 | IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
eClass | V11.1 : 27371392 | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
Manufacturer ID | 1SCA123066R1001 |
Specifications may be subject to change without notice
