Product Model

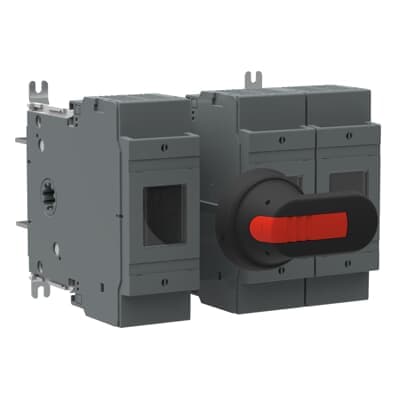

OS250D03BB-KD
Selling Points
- 1Designed for DIN applications, ensuring compatibility with standard DIN configurations.
- 2Provides reliable 3-pole safety protection against short circuits and overcurrents.
- 3Ideal for use in industrial settings where high safety standards are required.
- 4Offers maximum protection with its specialized connected switch fuse design.
- 5Enhances electrical system reliability with its robust and durable construction.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Weight | 3.53 kg | Fuse Size | NH0 NH1 |
Fuse System | DIN | Mounting Type | Base mounting |
Number of Poles | 3 | Operating Mode | Front Operated |
Power Loss | at Rated Operating Conditions per Pole 13 W | Rated Operational Voltage | Main Circuit 690 V AC |
Standards | IEC 60947-3 | Terminal Type | Lug terminals |
Tightening Torque | 30 ⦠44 N·m | Tightening Torque | 30 ⦠44 N·m |
ETIM 8 | EC001040 - Fuse switch disconnector | ETIM 9 | EC001040 - Fuse switch disconnector |
UNSPSC | 39122233 | IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Manufacturer ID | 1SCA114772R1001 |
Specifications may be subject to change without notice
