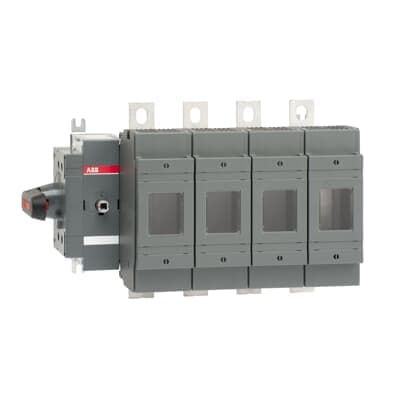

Product Model
OS250D04F-60
Selling Points
- 1Wide Range of International Fuse Clip Options
- 2High-Performance Quick-Make/Quick-Break Mechanism
- 3Full Fuse Isolation in Off Position for Enhanced Safety
- 4Durable Construction with Flange Mounted Operation
- 5UL/CSA and IEC Approval Ratings for Global Compliance
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Weight | 4.65 kg | Fuse Size | NH0 NH1 |
Fuse System | DIN | Mounting Type | Base mounting |
Number of Poles | 4 | Operating Mode | Front Operated |
Power Loss | at Rated Operating Conditions per Pole 13 W | Rated Operational Voltage | Main Circuit 690 V AC |
Standards | IEC 60947-3 | Terminal Type | Lug terminals |
Tightening Torque | 30 ⦠44 N·m | Tightening Torque | 30 ⦠44 N·m |
ETIM 8 | EC001040 - Fuse switch disconnector | ETIM 9 | EC001040 - Fuse switch disconnector |
UNSPSC | 39122233 | IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Manufacturer ID | 1SCA124519R1001 |
Specifications may be subject to change without notice
