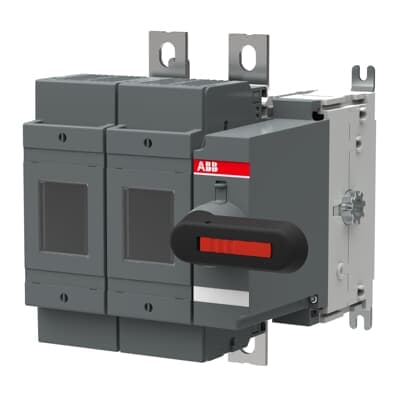

Product Model
OS250D20K
Selling Points
- 1Ideal for applications up to 250A.
- 2Designed for maximum safety and efficiency.
- 3High-quality short-circuit protection.
- 4Suitable for various electrical applications.
- 5Durable and reliable performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Width | 310 mm | Product Net Height | 270 mm |
Product Net Depth / Length | 200 mm | Product Net Weight | 2.5 kg |
Fuse Size | NH0 NH1 | Fuse System | DIN |
Mounting Type | Base mounting | Number of Poles | 2 |
Operating Mode | Front Operated | Power Loss | at Rated Operating Conditions per Pole 13 W |
Rated Operational Voltage | Main Circuit 690 V AC | Standards | IEC 60947-3 |
Terminal Type | Lug terminals | Tightening Torque | 30 ⦠44 N·m |
Tightening Torque | 30 ⦠44 N·m | Object Classification Code | Q |
ETIM 8 | EC001040 - Fuse switch disconnector | ETIM 9 | EC001040 - Fuse switch disconnector |
UNSPSC | 39122233 | IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
eClass | V11.1 : 27371392 | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
Manufacturer ID | 1SCA144497R1001 |
Specifications may be subject to change without notice
