ABBFuse protector
Product Model

OS250D22LRP

Manufacturer

ABB

Category

Fuse protector

Product ID

77337

In Stock
Last updated: 2025/4/18
View Specifications

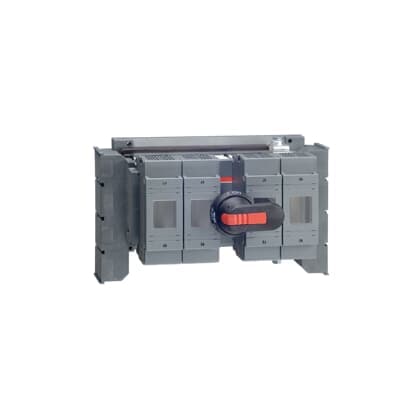

ABB OS250D22LRP

Selling Points

  • 1Robust Motor Protection: Designed to safeguard motors in heavy industry settings.
  • 2IP65 Rating: Ensures durability with an ingress protection rating of IP65.
  • 3Adjustable Shaft: Allows for flexible installation depths to fit different applications.
  • 4Padlockable Handle: Provides secure operation with a padlockable handle in the OFF-position.
  • 5High Current Rating: Supports up to 250 A of operational current, suitable for various voltage ranges.
Product Details
OS250D22LRP
ABB

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Pollution Degree
3
Product Net Width
407 mm
Product Net Height
200 mm
Product Net Depth / Length
184 mm
Product Net Weight
8 kg 17.64 lb
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 250 A
Conventional Thermal Current (Ithe)
Fully Enclosed 250 A
Fourth Pole Type
Switched - Fusible Pole
Fuse Size
NH0 NH1
Fuse System
DIN
Handle Type
Pistol handle and shaft included
Mounting Type
Base mounting
Number of Poles
4
Operating Mode
Front Operated
Pollution Degree
3
Position of Line Terminals
Left In - Right Out
Power Loss
at Rated Operating Conditions per Pole 17 W
Rated Conditional Short-Circuit Current (Inc)
(690 V) 80 kA
Rated Current (In)
Main Circuit 250 A
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
1000 V
Rated Operational Current AC-21A (Ie)
(500 V) 250 A (690 V) 250 A
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 250 A (500 V) 250 A (690 V) 250 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 250 A (500 V) 250 A (690 V) 250 A
Rated Operational Power AC-23A (Pe)
(220 ... 240 V) 75 kW (400 V) 140 kW (415 V) 145 kW (500 V) 170 kW (690 V) 250 kW
Rated Operational Voltage
Main Circuit 690 V AC
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 8 kiloampere rms
Standards
IEC 60947-3
Switches Operating Mechanism
22 (Between the Poles)
Terminal Type
Lug terminals
Terminal Width
25 mm
Tightening Torque
30 ... 44 N·m
Tightening Torque
30 ... 44 N·m
Object Classification Code
Q
ETIM 8
EC001040 - Fuse switch disconnector
ETIM 9
EC001040 - Fuse switch disconnector
UNSPSC
39122233
IDEA Granular Category Code (IGCC)
5291 >> Fuse switch disconnector
eClass
V11.1 : 27371401
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Manufacturer ID
1SCA022853R0310
