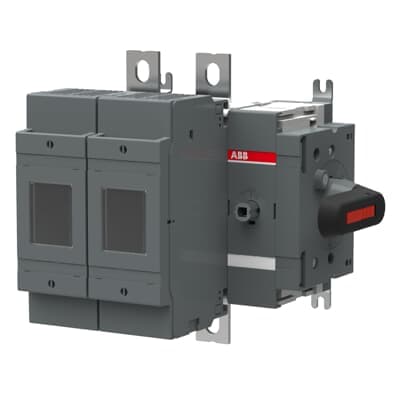

Product Model
OS250DS20K
Selling Points
- 1Handles up to 250A for reliable operation in demanding electrical systems.
- 2Ensures efficient and safe switching with direct handle operation.
- 3Built with robust materials for long-lasting performance in harsh environments.
- 4Suitable for a variety of electrical applications requiring dual-pole disconnection.
- 5Meets international standards for electrical safety and performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Width | 310 mm | Product Net Height | 270 mm |
Product Net Depth / Length | 200 mm | Product Net Weight | 2.08 kg |
Fuse Size | NH0 NH1 | Fuse System | DIN |
Mounting Type | Base mounting | Number of Poles | 2 |
Operating Mode | Side Operated | Power Loss | at Rated Operating Conditions per Pole 13 W |
Rated Operational Voltage | Main Circuit 690 V AC | Standards | IEC 60947-3 |
Terminal Type | Lug terminals | Tightening Torque | 30 ⦠44 N·m |
Tightening Torque | 30 ⦠44 N·m | Object Classification Code | Q |
ETIM 8 | EC001040 - Fuse switch disconnector | ETIM 9 | EC001040 - Fuse switch disconnector |
UNSPSC | 39122233 | IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
eClass | V11.1 : 27371392 | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
Manufacturer ID | 1SCA143959R1001 |
Specifications may be subject to change without notice
