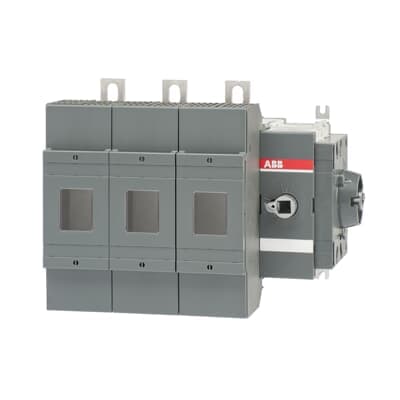

ABB OS400BS30

Selling Points

  • 1Reliable Motor Protection: Ideal for heavy industry applications, ensuring reliable operation and long electrical life.
  • 2Self-Cleaning Contacts: Maintenance-free design with self-cleaning contacts for consistent performance.
  • 3Modular Design: Easy and cost-efficient installation, maintenance, and use with adjustable shaft and snap-on accessories.
  • 4Safety Features: Interlocking fuse covers prevent opening while the switch is in the "ON" position, reducing the risk of electric shock.
  • 5Customizable Installation: Adjustable shaft and mounting feet for various installation depths, eliminating the need for special cutting tools.
Product Details
OS400BS30
ABB

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Pollution Degree
3
Product Net Width
288 mm
Product Net Height
230 mm
Product Net Depth / Length
176 mm
Product Net Weight
6.675 kg 14.72 lb
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 400 A
Conventional Thermal Current (Ithe)
Fully Enclosed 400 A
Fuse Size
B1-B4
Fuse System
British Standard
Handle Type
Handle and shaft not included
Mounting Type
Base mounting
Number of Poles
3
Operating Mode
Side Operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 30 W
Rated Conditional Short-Circuit Current (Inc)
(690 V) 80 kA
Rated Current (In)
Main Circuit 400 A
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
1000 V
Rated Operational Current AC-21A (Ie)
(500 V) 400 A (690 V) 400 A
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 400 A (500 V) 400 A (690 V) 400 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 400 A (500 V) 400 A (690 V) 400 A
Rated Operational Power AC-23A (Pe)
(220 ... 240 V) 132 kW (400 V) 220 kW (415 V) 230 kW (500 V) 280 kW (690 V) 400 kW
Rated Operational Voltage
Main Circuit 690 V AC
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 14 kiloampere rms
Standards
IEC 60947-3
Switches Operating Mechanism
30 (Right Side)
Terminal Type
Lug terminals
Terminal Width
25 mm
Tightening Torque
30 ... 44 N·m
Tightening Torque
30 ... 44 N·m
Object Classification Code
Q
ETIM 8
EC001040 - Fuse switch disconnector
ETIM 9
EC001040 - Fuse switch disconnector
UNSPSC
39122233
IDEA Granular Category Code (IGCC)
5291 >> Fuse switch disconnector
eClass
V11.1 : 27371401
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Manufacturer ID
1SCA022871R0130
