Product Model

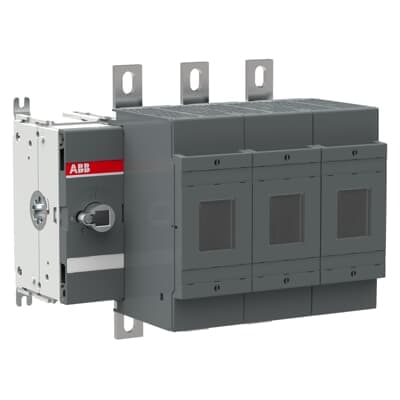

OS400D03-60
Selling Points
- 1High-Performance Electrical Safety: Ensures reliable operation under various voltage conditions.
- 2DIN Fuse System: Compatible with standard DIN fuse sizes for easy integration.
- 3Front Operated Mechanism: Easy to use with clear "ON" and "OFF" designations.
- 4Rated for High Currents: Handles up to 400 A in various voltage configurations.
- 5Compliant with IEC 60947-3 Standards: Meets international safety standards for electrical switches.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Weight | 5.81 kg | Fuse Size | NH0 NH1 NH2 |
Fuse System | DIN | Mounting Type | Base mounting |
Number of Poles | 3 | Operating Mode | Front Operated |
Power Loss | at Rated Operating Conditions per Pole 30 W | Rated Operational Voltage | Main Circuit 690 V AC |
Standards | IEC 60947-3 | Terminal Type | Lug terminals |
Tightening Torque | 30 ⦠44 N·m | Tightening Torque | 30 ⦠44 N·m |
ETIM 8 | EC001040 - Fuse switch disconnector | ETIM 9 | EC001040 - Fuse switch disconnector |
UNSPSC | 39122233 | IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Manufacturer ID | 1SCA022845R3310 |
Specifications may be subject to change without notice
