Product Model

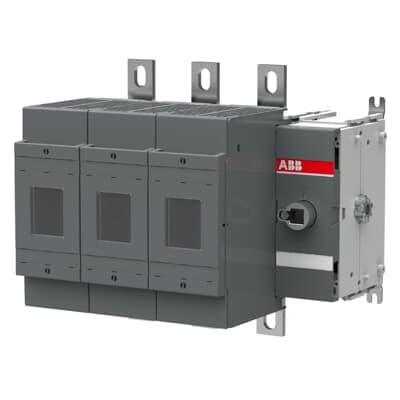

OS400D30-3
Selling Points
- 1Robust Protection: The ABB OS400D30-3 switch fuse provides reliable protection against short circuits and overcurrents, ensuring the safety of your electrical equipment.
- 2Front Operated: Designed for easy operation, this switch fuse features a front-operated mechanism for convenient use.
- 3High Voltage Capability: Rated for 12 kV impulse withstand voltage and 1000 V insulation voltage, it handles high-voltage applications with ease.
- 4Durable Construction: Built with a durable DIN fuse system and lug terminals, this switch fuse is designed to withstand harsh electrical environments.
- 5Compliance with Standards: Meets IEC 60947-3 standards and follows EU Directive 2011/65/EU for RoHS compliance, ensuring it meets industry safety and environmental regulations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Width | 270 mm | Product Net Height | 240 mm |
Product Net Depth / Length | 206 mm | Product Net Weight | 5.865 kg |
Fuse Size | NH0 NH1 NH2 | Fuse System | DIN |
Mounting Type | Base mounting | Number of Poles | 3 |
Operating Mode | Front Operated | Power Loss | at Rated Operating Conditions per Pole 30 W |
Rated Operational Voltage | Main Circuit 690 V AC | Standards | IEC 60947-3 |
Terminal Type | Lug terminals | Tightening Torque | 30 ⦠44 N·m |
Tightening Torque | 30 ⦠44 N·m | ETIM 8 | EC001040 - Fuse switch disconnector |
ETIM 9 | EC001040 - Fuse switch disconnector | UNSPSC | 39122233 |
IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
Manufacturer ID | 1SCA022780R3870 |
Specifications may be subject to change without notice
