Product Model

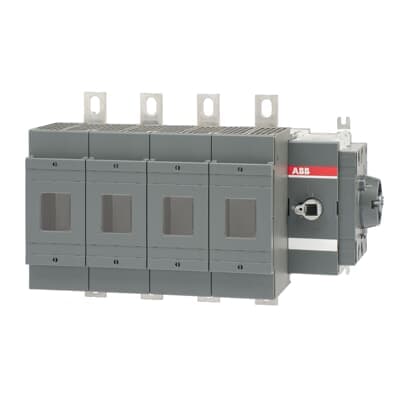

OS400DS40F
Selling Points
- 1World-class performance: Designed for extreme conditions with knife contact design that keeps contacts pushed firmly together.
- 2Self-cleaning contacts: Maintenance-free and long-lasting, ensuring reliable electrical life.
- 3Modular design: Easy and cost-efficient installation, maintenance, and use with adjustable shafts and snap-on auxiliary contacts.
- 4Safety features: Interlocking fuse covers prevent opening while the switch is in the “ON” position, reducing the risk of electric shock.
- 5Versatile configurations: Available in various ampere ratings (200-1250 A) and pole configurations to suit different needs and special requirements.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Pollution Degree | 3 | Product Net Width | 352 mm |
Product Net Height | 230 mm | Product Net Depth / Length | 193 mm |
Product Net Weight | 8.455 kg 18.64 lb | Conventional Free-air Thermal Current (Ith) | Π= 40 °C 400 A |
Conventional Thermal Current (Ithe) | Fully Enclosed 400 A | Fourth Pole Type | Switched - Fusible Pole |
Fuse Size | NH0 NH1 NH2 | Fuse System | DIN |
Handle Type | Handle and shaft not included | Mounting Type | Base mounting |
Number of Poles | 4 | Operating Mode | Side Operated |
Pollution Degree | 3 | Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
Power Loss | at Rated Operating Conditions per Pole 30 W | Rated Conditional Short-Circuit Current (Inc) | (690 V) 80 kA |
Rated Current (In) | Main Circuit 400 A | Rated Impulse Withstand Voltage (Uimp) | 12 kV |
Rated Insulation Voltage (Ui) | 1000 V | Rated Operational Current AC-21A (Ie) | (500 V) 400 A (690 V) 400 A |
Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 400 A (500 V) 400 A (690 V) 400 A | Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 400 A (500 V) 400 A (690 V) 400 A |
Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 132 kW (400 V) 220 kW (415 V) 230 kW (500 V) 280 kW (690 V) 400 kW | Rated Operational Voltage | Main Circuit 690 V AC |
Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 14 kiloampere rms | Standards | IEC 60947-3 |
Switches Operating Mechanism | 40 (Right Side) | Terminal Type | Lug terminals |
Terminal Width | 25 mm | Tightening Torque | 30 ... 44 N·m |
Tightening Torque | 30 ... 44 N·m | Object Classification Code | Q |
ETIM 8 | EC001040 - Fuse switch disconnector | ETIM 9 | EC001040 - Fuse switch disconnector |
UNSPSC | 39122233 | IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
eClass | V11.1 : 27371401 | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
E-Number (Finland) | 3661156 | Manufacturer ID | 1SCA022871R3070 |
Specifications may be subject to change without notice
