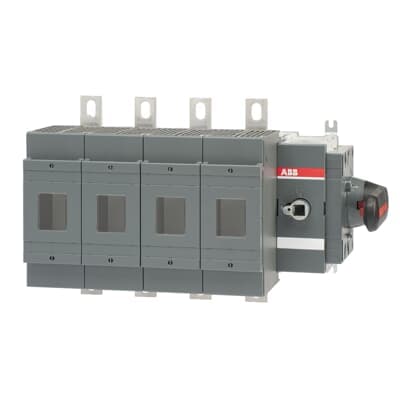

Product Model
OS400DS40FK
Selling Points
- 1High-Performance Electrical Solution: Designed for high-current applications with a rated permanent current of 400 A.
- 24-Pole Operation: Suitable for side-operated, 4-pole configurations with direct mounted handles.
- 3Durable Construction: Built to withstand harsh electrical environments with a conditioned rated short-circuit current of 80 kA.
- 4Versatile Mounting Options: Equipped for busbar mounting, offering flexibility in installation.
- 5Comprehensive Safety Features: Meets safety switch standards, ensuring reliable protection against electrical faults.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Pollution Degree | 3 | Product Net Width | 352 mm |
Product Net Height | 230 mm | Product Net Depth / Length | 193 mm |
Product Net Weight | 8.595 kg 18.95 lb | Conventional Free-air Thermal Current (Ith) | Π= 40 °C 400 A |
Conventional Thermal Current (Ithe) | Fully Enclosed 400 A | Fourth Pole Type | Switched - Fusible Pole |
Fuse Size | NH0 NH1 NH2 | Fuse System | DIN |
Handle Type | Direct mounted handle included | Mounting Type | Base mounting |
Number of Poles | 4 | Operating Mode | Side Operated |
Pollution Degree | 3 | Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
Power Loss | at Rated Operating Conditions per Pole 30 W | Rated Conditional Short-Circuit Current (Inc) | (690 V) 80 kA |
Rated Current (In) | Main Circuit 400 A | Rated Impulse Withstand Voltage (Uimp) | 12 kV |
Rated Insulation Voltage (Ui) | 1000 V | Rated Operational Current AC-21A (Ie) | (500 V) 400 A (690 V) 400 A |
Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 400 A (500 V) 400 A (690 V) 400 A | Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 400 A (500 V) 400 A (690 V) 400 A |
Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 132 kW (400 V) 220 kW (415 V) 230 kW (500 V) 280 kW (690 V) 400 kW | Rated Operational Voltage | Main Circuit 690 V AC |
Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 14 kiloampere rms | Standards | IEC 60947-3 |
Switches Operating Mechanism | 40 (Right Side) | Terminal Type | Lug terminals |
Terminal Width | 25 mm | Tightening Torque | 30 ... 44 N·m |
Tightening Torque | 30 ... 44 N·m | Object Classification Code | Q |
ETIM 8 | EC001040 - Fuse switch disconnector | ETIM 9 | EC001040 - Fuse switch disconnector |
UNSPSC | 39122233 | IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
eClass | V11.1 : 27371401 | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
E-Number (Finland) | 3661168 | Manufacturer ID | 1SCA022871R3150 |
Specifications may be subject to change without notice
