Product Model

OS400J12

In Stock
Last updated: 2025/4/18

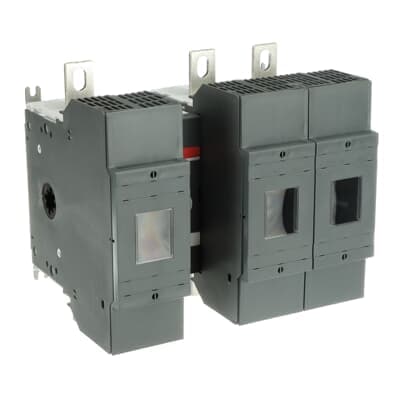

ABB OS400J12

Selling Points

  • 1High-Power Rating: Handles up to 350 hp at 600 VAC.
  • 2Reliable Protection: Provides overcurrent protection with Class J fuses.
  • 3Easy Installation: DIN Rail/Surface Mount design for versatile mounting options.
  • 4Safety Features: Interlocked fuse covers prevent opening while in ON position.
  • 5Compliance Standards: Meets UL 98 and IEC 60947-3 standards for safety and reliability.
Product Details
OS400J12
ABB

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Pollution Degree
3
Product Net Width
254 mm
Product Net Height
230 mm
Product Net Depth / Length
176 mm
Product Net Weight
6.4 kg 14.11 lb
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 400 A
Conventional Thermal Current (Ithe)
Fully Enclosed 400 A
Fuse Size
400 A
Fuse System
Class J
Handle Type
Handle and shaft not included
Mounting Type
Base mounting
Number of Poles
3P
Operating Mode
Front Operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 30 W
Rated Conditional Short-Circuit Current (Inc)
(690 V) 80 kA
Rated Current (In)
Main Circuit 400 A
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
1000 V
Rated Operational Current AC-21A (Ie)
(500 V) 400 A (690 V) 400 A
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 400 A (500 V) 400 A (690 V) 400 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 400 A (500 V) 400 A (690 V) 400 A
Rated Operational Power AC-23A (Pe)
(220 ... 240 V) 132 kW (400 V) 220 kW (415 V) 230 kW (500 V) 280 kW (690 V) 400 kW
Rated Operational Voltage
Main Circuit 600 V AC
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 14 kiloampere rms
Standards
UL98 IEC 60947-3
Switches Operating Mechanism
12 (Between the Poles)
Terminal Type
Lug terminals
Terminal Width
25 mm
Tightening Torque
30 ... 44 N·m
Ampere Rating
400 A
Horsepower Rating UL/CSA
(acc. to UL 240 V) 125 Hp (acc. to UL 480 V) 250 Hp (acc. to UL 600 V) 350 Hp
Tightening Torque
30 ... 44 N·m
Tightening Torque UL/CSA
Wire-Clamp 375 in·lb Cable Lug 240 in·lb
Object Classification Code
Q
ETIM 8
EC001040 - Fuse switch disconnector
ETIM 9
EC001040 - Fuse switch disconnector
UNSPSC
39122233
IDEA Granular Category Code (IGCC)
5291 >> Fuse switch disconnector
eClass
V11.1 : 27371401
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Manufacturer ID
1SCA022755R3150

Specifications may be subject to change without notice
