Product Model

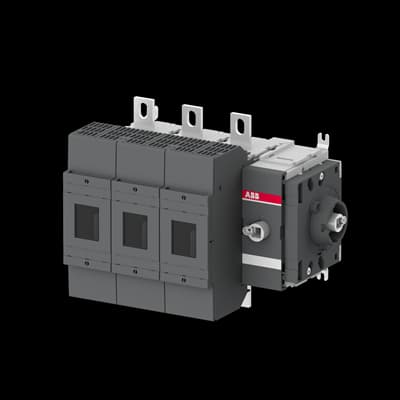

OS400JS30
Selling Points
- 1High Amperage Rating: 400 A for heavy-duty applications.
- 2Reliable Voltage Rating: 600 VAC for safe and efficient operation.
- 3Three-Pole Configuration: Suitable for various electrical configurations.
- 4Fusible Design: Automatically disconnects in case of an overload.
- 5Compliance with EU Directives: Meets EU Directive 2011/65/EU and Amendment 2015/863 for environmental safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Width | 176 mm | Product Net Height | 288 mm |
Product Net Depth / Length | 230 mm | Product Net Weight | 6.7 kg |
Fuse Size | 400 A | Fuse System | Class J |
Mounting Type | Base mounting | Number of Poles | 3 |
Operating Mode | Side Operated | Power Loss | at Rated Operating Conditions per Pole 30 W |
Rated Operational Voltage | Main Circuit 600 V AC | Standards | UL98 |
Terminal Type | Lug terminals | Tightening Torque | 30 ⦠44 N·m |
Ampere Rating | 400 A | Tightening Torque | 30 ⦠44 N·m |
Object Classification Code | Q | ETIM 8 | EC001040 - Fuse switch disconnector |
ETIM 9 | EC001040 - Fuse switch disconnector | UNSPSC | 39122233 |
IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector | eClass | V11.1 : 27371392 |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Manufacturer ID | 1SCA022871R4980 |
Specifications may be subject to change without notice
