Product Model

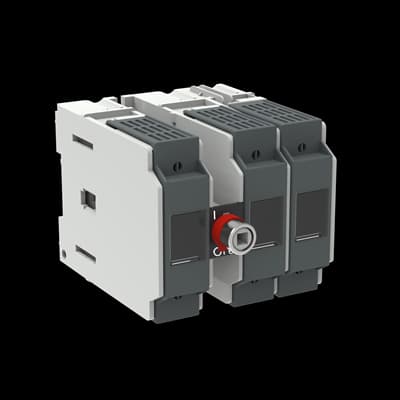

OS40FD12000-2
Selling Points
- 1High insulation voltage (1000 V) for reliable operation in harsh environments.
- 2Compact design for easy installation in smaller enclosures, saving space and installation time.
- 3Adjustable shaft for various installation depths, enhancing flexibility in panel design.
- 4High protection and reliability with rapid fault clearance, maintaining protection levels even after faults occur.
- 5Meets IEC standards, ensuring compliance with international safety regulations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Pollution Degree | 3 | Product Net Width | 106 mm |
Product Net Height | 97 mm | Product Net Depth / Length | 133 mm |
Product Net Weight | 0.7 kg | Cable Cross-Section | 0.75 ... 10 mm² |
Connecting Capacity | Stranded 0.75 ⦠10 mm² Flexible 0.75 ⦠10 mm² | Conventional Free-air Thermal Current (Ith) | Π= 40 °C 40 A |
Conventional Thermal Current (Ithe) | Fully Enclosed 40 A | Fuse Size | NH000 |
Fuse System | DIN | Handle Type | Handle and shaft not included |
Mounting Type | Base mounting | Number of Poles | 3 |
Operating Mode | Front Operated | Pollution Degree | 3 |
Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out | Power Loss | at Rated Operating Conditions per Pole 3.5 W |
Rated Conditional Short-Circuit Current (Inc) | (690 V) 80 kA | Rated Current (In) | Main Circuit 40 A |
Rated Impulse Withstand Voltage (Uimp) | 12 kV | Rated Insulation Voltage (Ui) | 1000 V |
Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 40 A (500 V AC) 40 A (690 V AC) 40 A | Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 40 A (500 V) 40 A (690 V) 40 A |
Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 40 A (500 V) 40 A (690 V) 40 A | Rated Operational Power AC-23A (Pe) | (230 V) Three Phase 11 kW (400 ... 415 V) 18.5 kW (500 V) 22 kW (690 V) 30 kW |
Rated Operational Voltage | Main Circuit 690 V AC | Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 1 kiloampere rms |
Standards | IEC 60947-3 | Switches Operating Mechanism | 12 (Between the Poles) |
Terminal Type | Screw Terminals | Tightening Torque | 2 N·m |
Wire Stripping Length | Main Circuit 12 ⦠14 mm Main Circuit 0.47 ⦠0.55 in | Wire Stripping Length | Main Circuit 12 ⦠14 mm Main Circuit 0.47 ⦠0.55 in |
Tightening Torque | 2 N·m | Object Classification Code | Q |
ETIM 8 | EC001040 - Fuse switch disconnector | ETIM 9 | EC001040 - Fuse switch disconnector |
UNSPSC | 39122233 | IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
eClass | V11.1 : 27371401 | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
Manufacturer ID | 1SCA108921R1001 |
Specifications may be subject to change without notice
