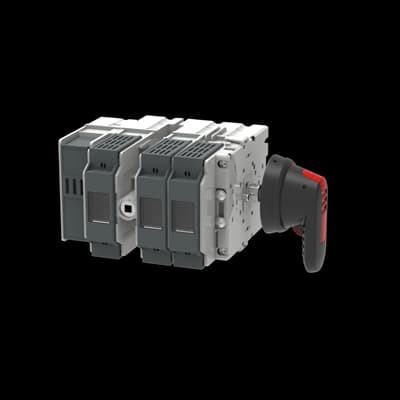

Product Model
OS40FDS40000N1
Selling Points
- 1Reliable Motor Protection: Designed to handle extreme conditions, ensuring continuous operation and fault clearance.
- 2Modular Design: Easy installation and maintenance with adjustable shafts and snap-on accessories, reducing installation time by up to 50%.
- 3Safety Features: Interlocking fuse covers prevent opening while the switch is in the "ON" position, reducing the risk of electric shock.
- 4High Insulation Voltage: Rated insulation voltage of 1000 V, ensuring safe operation in various environments.
- 5Compliance with Standards: Meets IEC 60947-3 standards, ensuring high-quality performance and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Environmental Information | 1SCC311002D0201 | Pollution Degree | 3 |
Product Net Width | 126 mm | Product Net Height | 97 mm |
Product Net Depth / Length | 141 mm | Product Net Weight | 0.8 kg |
Cable Cross-Section | 2.5 ... 25 mm² | Connecting Capacity | Stranded 0.75 ⦠10 mm² Flexible 0.75 ⦠10 mm² |
Conventional Free-air Thermal Current (Ith) | Π= 40 °C 40 A | Conventional Thermal Current (Ithe) | Fully Enclosed 40 A |
Fourth Pole Position | Left Side | Fourth Pole Type | Switched - With Solid Link |
Fuse Size | NH000 | Fuse System | DIN |
Handle Type | Handle and shaft not included | Mounting Type | Base mounting |
Number of Poles | 4P | Operating Mode | Side Operated |
Pollution Degree | 3 | Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
Power Loss | at Rated Operating Conditions per Pole 3.5 W | Rated Conditional Short-Circuit Current (Inc) | (690 V) 80 kA |
Rated Current (In) | Main Circuit 40 A | Rated Impulse Withstand Voltage (Uimp) | 12 kV |
Rated Insulation Voltage (Ui) | 1000 V | Rated Operational Current AC-21A (Ie) | (500 V) 40 A (690 V) 40 A |
Rated Operational Current AC-22A (Ie) | (500 V) 40 A (690 V) 40 A | Rated Operational Current AC-23A (Ie) | (500 V) 40 A (690 V) 40 A |
Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 11 kW (400 V) 18.5 kW (415 V) 18.5 kW (500 V) 22 kW (690 V) 30 kW | Rated Operational Voltage | Main Circuit 690 V AC |
Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 1 kiloampere rms | Standards | IEC 60947-3 |
Switches Operating Mechanism | 40 (Right Side) | Terminal Type | Screw Terminals |
Tightening Torque | 2 N·m | Wire Stripping Length | Main Circuit 12 ⦠14 mm Main Circuit 0.47 ⦠0.55 in |
Wire Stripping Length | Main Circuit 12 ⦠14 mm Main Circuit 0.47 ⦠0.55 in | Tightening Torque | 2 N·m |
Object Classification Code | Q | ETIM 8 | EC001040 - Fuse switch disconnector |
ETIM 9 | EC001040 - Fuse switch disconnector | UNSPSC | 39122233 |
IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector | eClass | V11.1 : 27371401 |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Manufacturer ID | 1SCA108954R1001 |
Specifications may be subject to change without notice
