Product Model

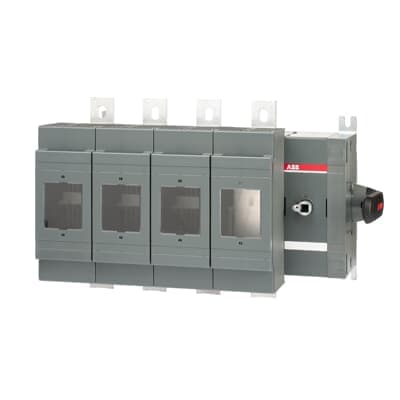

OS630D22N2-60
Selling Points
- 1Built to withstand demanding industrial conditions.
- 2Ensures accurate switching and protection in critical systems.
- 3Durable design for long-lasting performance.
- 4Suitable for a wide range of industrial applications.
- 5Meets international safety and performance standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Width | 453 mm | Product Net Height | 328 mm |
Product Net Depth / Length | 260 mm | Product Net Weight | 17.33 kg |
Fuse Size | NH2 NH3 | Fuse System | DIN |
Mounting Type | Base mounting | Number of Poles | 4 |
Operating Mode | Front Operated | Power Loss | at Rated Operating Conditions per Pole 46 W |
Rated Operational Voltage | Main Circuit 690 V AC | Standards | IEC 60947-3 |
Terminal Type | Lug terminals | Tightening Torque | 50 ⦠75 N·m |
Tightening Torque | 50 ⦠75 N·m | ETIM 8 | EC001040 - Fuse switch disconnector |
ETIM 9 | EC001040 - Fuse switch disconnector | UNSPSC | 39122233 |
IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
Manufacturer ID | 1SCA022864R9550 |
Specifications may be subject to change without notice
