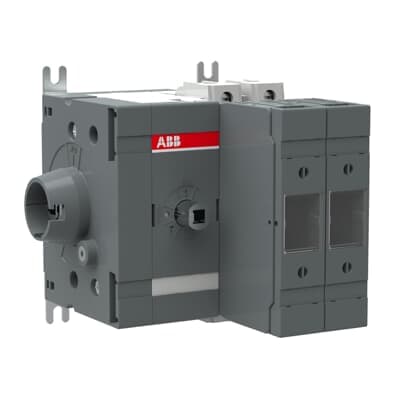

Product Model
OS63GBSL40N1MNS
Selling Points
- 1Reliable industrial protection with advanced switch fuse technology.
- 2High-performance switching and fusing in a single unit.
- 3Designed for demanding industrial applications.
- 4Enhanced safety features for secure operation.
- 5Compatible with various industrial control systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Weight | 1.5 kg | Connecting Capacity | Stranded 2.5 ⦠25 mm² Flexible 2.5 ⦠25 mm² |
Fuse Size | A2 A3 | Fuse System | British Standard |
Mounting Type | Base mounting | Number of Poles | 4 |
Operating Mode | Side Operated | Power Loss | at Rated Operating Conditions per Pole 4 W |
Rated Operational Voltage | Main Circuit 690 V AC | Standards | IEC 60947-3 |
Terminal Type | Screw Terminals | Tightening Torque | 3 N·m 4 N·m |
Tightening Torque | 3 N·m 4 N·m | ETIM 8 | EC001040 - Fuse switch disconnector |
ETIM 9 | EC001040 - Fuse switch disconnector | UNSPSC | 39122233 |
IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
Manufacturer ID | 1SCA124606R1001 |
Specifications may be subject to change without notice
