Product Model

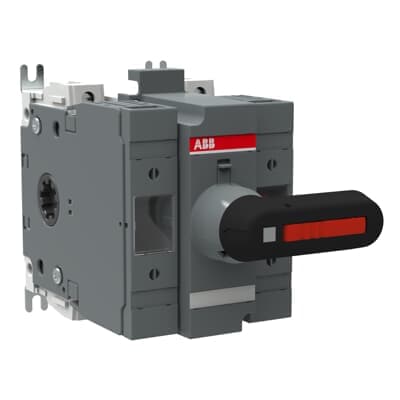

OS63GD11K
Selling Points
- 1The OS63GD11K switch fuse offers advanced safety features to protect against short circuits and overcurrents.
- 2Compatible with DIN, BS, NFC, CC, JJ, and L types of fuses, making it versatile for different electrical systems.
- 3Available in a range of amperages from 20 to 1250 Amperes, catering to various electrical needs.
- 4Designed for manual operation, ensuring straightforward installation and maintenance.
- 5Over 1800 tested and validated coordination tables available for precise device selection.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Width | 165 mm | Product Net Height | 91 mm |
Product Net Depth / Length | 112 mm | Product Net Weight | 0.88 kg |
Connecting Capacity | Stranded 2.5 ⦠25 mm² Flexible 2.5 ⦠25 mm² | Fuse Size | NH000 |
Fuse System | DIN | Mounting Type | Base mounting |
Number of Poles | 2 | Operating Mode | Front Operated |
Power Loss | at Rated Operating Conditions per Pole 4 W | Rated Operational Voltage | Main Circuit 690 V AC |
Standards | IEC 60947-3 | Terminal Type | Screw Terminals |
Tightening Torque | 3 N·m 4 N·m | Wire Stripping Length | Main Circuit 12 mm Main Circuit 0.47 in |
Wire Stripping Length | Main Circuit 12 mm Main Circuit 0.47 in | Tightening Torque | 3 N·m 4 N·m |
Object Classification Code | Q | ETIM 8 | EC001040 - Fuse switch disconnector |
ETIM 9 | EC001040 - Fuse switch disconnector | UNSPSC | 39122233 |
IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector | eClass | V11.1 : 27371392 |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Manufacturer ID | 1SCA128855R1001 |
Specifications may be subject to change without notice
