Product Model

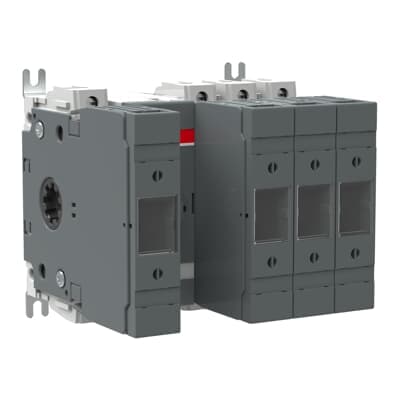

OS63GD13N2
Selling Points
- 1Designed for reliability and efficiency in smart grid applications.
- 2Ensures high performance and durability.
- 3Ideal for use in critical infrastructure projects.
- 4Meets stringent safety standards for electrical systems.
- 5Compatible with a wide range of smart grid technologies.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Width | 121 mm | Product Net Height | 138 mm |
Product Net Depth / Length | 112 mm | Product Net Weight | 1.2 kg |
Connecting Capacity | Stranded 2.5 ⦠25 mm² Flexible 2.5 ⦠25 mm² | Fuse Size | NH000 |
Fuse System | DIN | Mounting Type | Base mounting |
Number of Poles | 4 | Operating Mode | Front Operated |
Power Loss | at Rated Operating Conditions per Pole 4 W | Rated Operational Voltage | Main Circuit 690 V AC |
Standards | IEC 60947-3 | Terminal Type | Screw Terminals |
Tightening Torque | 3 N·m 4 N·m | Wire Stripping Length | Main Circuit 12 mm Main Circuit 0.47 in |
Wire Stripping Length | Main Circuit 12 mm Main Circuit 0.47 in | Tightening Torque | 3 N·m 4 N·m |
Object Classification Code | Q | ETIM 8 | EC001040 - Fuse switch disconnector |
ETIM 9 | EC001040 - Fuse switch disconnector | UNSPSC | 39122233 |
IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector | eClass | V11.1 : 27371392 |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Manufacturer ID | 1SCA123065R1001 |
Specifications may be subject to change without notice
