Product Model

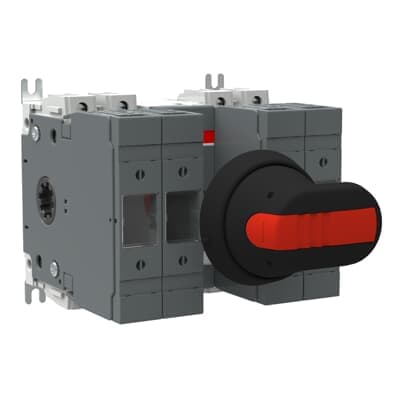

OS63GD22N1P
Selling Points
- 1High-Quality Electrical Connection: The ABB 1SCA116729R1001 OS63GD22N1P switch fuse ensures reliable and high-quality electrical connections.
- 24-Pole Configuration: Designed with a 4-pole configuration, this switch fuse provides comprehensive protection for your electrical system.
- 363A Capacity: With a capacity of 63A, this switch fuse is suitable for various industrial and commercial applications.
- 4DIN Fuse System: Compatible with the DIN fuse system, it offers easy integration into existing electrical setups.
- 5Front-Operated Handle: Equipped with a front-operated handle and shaft, it provides convenient operation and control.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Pollution Degree | 3 | Product Net Width | 138 mm |
Product Net Height | 112 mm | Product Net Depth / Length | 121 mm |
Product Net Weight | 1.4 kg 3 lb | Cable Cross-Section | 2.5 ... 25 mm² |
Connecting Capacity | Stranded 2.5 ⦠25 mm² Flexible 2.5 ⦠25 mm² | Conventional Free-air Thermal Current (Ith) | Π= 40 °C 63 A |
Conventional Thermal Current (Ithe) | Fully Enclosed 63 A | Fourth Pole Position | Left Side |
Fourth Pole Type | Switched - With Solid Link | Fuse Size | NH000 |
Fuse System | DIN | Handle Type | Pistol handle and shaft included |
Mounting Type | Base mounting | Number of Poles | 4 |
Operating Mode | Front Operated | Pollution Degree | 3 |
Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out | Power Loss | at Rated Operating Conditions per Pole 4 W |
Rated Conditional Short-Circuit Current (Inc) | (690 V) 80 kA | Rated Current (In) | Main Circuit 63 A |
Rated Impulse Withstand Voltage (Uimp) | 12 kV | Rated Insulation Voltage (Ui) | 1000 V |
Rated Operational Current AC-21A (Ie) | (500 V) 63 A (690 V) 63 A | Rated Operational Current AC-22A (Ie) | (500 V) 63 A (690 V) 63 A |
Rated Operational Current AC-23A (Ie) | (500 V) 63 A (690 V) 63 A | Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 18.5 kW (400 V) 30 kW (415 V) 30 kW (500 V) 37 kW (690 V) 55 kW |
Rated Operational Voltage | Main Circuit 690 V AC | Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 2.5 kiloampere rms |
Standards | IEC 60947-3 | Switches Operating Mechanism | 22 (Between the Poles) |
Terminal Type | Screw Terminals | Tightening Torque | 3 N·m 4 N·m |
Wire Stripping Length | Main Circuit 12 mm Main Circuit 0.47 in | Wire Stripping Length | Main Circuit 12 mm Main Circuit 0.47 in |
Tightening Torque | 3 N·m 4 N·m | Object Classification Code | Q |
ETIM 8 | EC001040 - Fuse switch disconnector | ETIM 9 | EC001040 - Fuse switch disconnector |
UNSPSC | 39122233 | IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
eClass | V11.1 : 27371401 | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
E-Number (Sweden) | 3172153 | Manufacturer ID | 1SCA116729R1001 |
Specifications may be subject to change without notice
