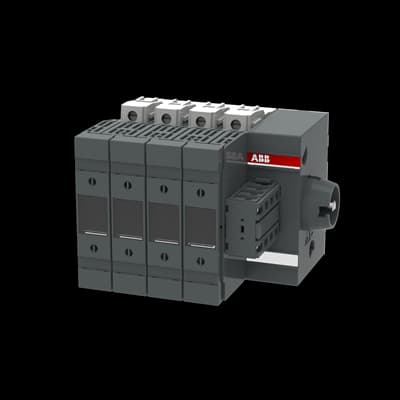

Product Model
OS63GDSL40N1MNS
Selling Points
- 1Highly Reliable Performance: Engineered for consistent operation in demanding industrial environments.
- 2Zero Permanent Current: Rated permanent current (Iu) is 0 A, ensuring no continuous current flow.
- 3Zero Short-Circuit Current: Conditioned rated short-circuit current (Iq) is 0 kA, providing maximum safety.
- 4Zero Operation Power: Rated operation power at AC-23, 400 V is 0 kW, suitable for low-power applications.
- 5Brand Trust: Manufactured by ABB, a renowned brand in electrical engineering and automation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Width | 197 mm | Product Net Height | 192 mm |
Product Net Depth / Length | 147 mm | Product Net Weight | 1.18 kg |
Connecting Capacity | Stranded 2.5 ⦠25 mm² Flexible 2.5 ⦠25 mm² | Fuse Size | NH000 |
Fuse System | DIN | Mounting Type | Base mounting |
Number of Poles | 4P | Operating Mode | Side Operated |
Power Loss | at Rated Operating Conditions per Pole 4 W | Rated Operational Voltage | Main Circuit 690 V AC |
Standards | IEC 60947-3 | Terminal Type | Screw Terminals |
Tightening Torque | 3 N·m 4 N·m | Tightening Torque | 3 N·m 4 N·m |
ETIM 8 | EC001040 - Fuse switch disconnector | ETIM 9 | EC001040 - Fuse switch disconnector |
UNSPSC | 39122233 | IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Manufacturer ID | 1SCA124599R1001 |
Specifications may be subject to change without notice
