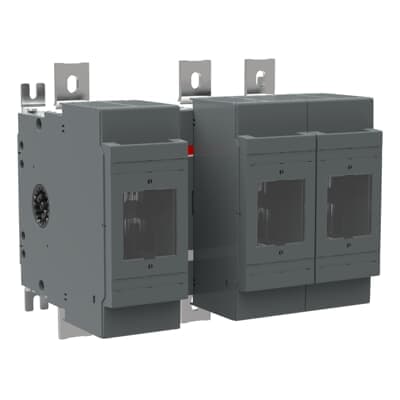

Product Model
OS800D12-3
Selling Points
- 1High current rating of 800A for efficient power management.
- 2Compatible with DIN standards for universal application.
- 3Front-operated design for easy and safe operation.
- 4Robust construction with a pollution level of 3, ensuring durability.
- 5Meets UL and CSA standards for enhanced safety and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Weight | 13.63 kg | Fuse Size | NH2 NH3 |
Fuse System | DIN | Mounting Type | Base mounting |
Number of Poles | 3 | Operating Mode | Front Operated |
Power Loss | at Rated Operating Conditions per Pole 75 W | Rated Operational Voltage | Main Circuit 690 V AC |
Standards | IEC 60947-3 | Terminal Type | Lug terminals |
Tightening Torque | 50 ⦠75 N·m | Tightening Torque | 50 ⦠75 N·m |
ETIM 8 | EC001040 - Fuse switch disconnector | ETIM 9 | EC001040 - Fuse switch disconnector |
UNSPSC | 39122233 | IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Manufacturer ID | 1SCA105543R1001 |
Specifications may be subject to change without notice
