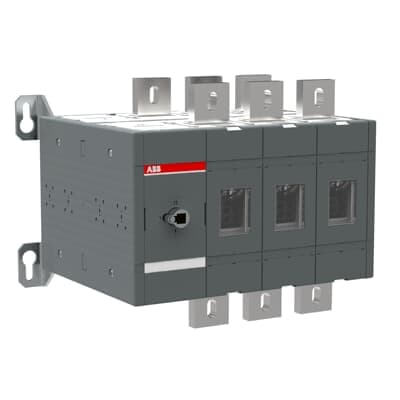

ABB OT1000E03C

Selling Points

  • 1Reliable Switching and Isolation: The OT1000E03C switch-disconnector provides reliable switching and isolation in a wide variety of AC applications up to 690V.
  • 2Efficient Design: Its efficient design ensures smoother and more sustainable operations, making it a top choice for electrical installations.
  • 3High Current Rating: Capable of handling high current ratings from 1000A to 1600A, making it suitable for demanding electrical systems.
  • 4Compliance with Regulations: Meets RoHS II and REACh regulations, ensuring compliance with environmental standards.
  • 5Long Product Lifetime: Designed to last up to 20 years, providing long-term reliability in electrical installations.
Product Details
OT1000E03C
ABB

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Degree of Protection
Front IP20
Environmental Information
1SCC303050D0201
Pollution Degree
3
Product Net Width
400 mm 15.75 in
Product Net Height
306 mm 12.05 in
Product Net Depth / Length
309 mm 12.17 in
Product Net Weight
48 kg 105.82 lb
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 1000 A
Degree of Protection
Front IP20
Distance Between Phases
Standard
Handle Color
Black
Handle Type
Handle and shaft not included
Mounting Type
Base mounting
Number of Poles
3P
Operating Mode
Front operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 19 W
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
1000 V
Rated Operational Current AC-21A (Ie)
(380 ... 415 V) 1000 A (500 V) 1000 A (690 V) 1000 A
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 1000 A (500 V) 1000 A (690 V) 1000 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 1000 A (500 V) 1000 A (690 V) 1000 A
Rated Operational Current AC-31B (Ie)
(380 ... 415 V) 1000 A
Rated Operational Current AC-33B (Ie)
(380 ... 415 V) 1000 A
Rated Operational Power AC-23A (Pe)
(380 ... 415 V) 560 kW (500 V) 710 kW (690 V) 1000 kW
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 50 kiloampere rms
Switches Operating Mechanism
Mechanism at the End of the Switch 03 (Left Side)
Terminal Type
Screw Terminals
Terminal Width
50 mm
Tightening Torque
acc. IEC 60947-1 50 ... 75 N·m
Transition Type
Open
Ampere Rating
1000 A
Tightening Torque
acc. IEC 60947-1 50 ... 75 N·m
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Manufacturer ID
1SCA022871R6170
