Product Model

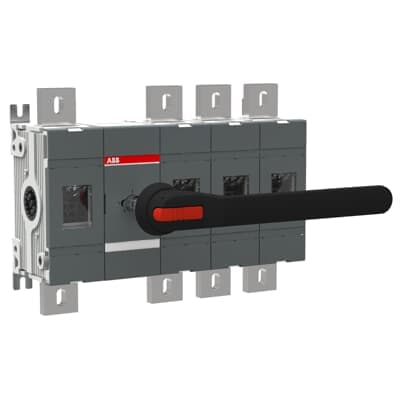

OT1000E13P
Selling Points
- 1Built with robust components to ensure consistent performance in demanding industrial environments.
- 2Designed with advanced manufacturing techniques for precise control and minimal error.
- 3Equipped with multiple safety protocols to protect against electrical hazards and ensure operator safety.
- 4Compatible with a wide range of connectors and accessories for easy integration into various systems.
- 5Constructed with high-quality materials to withstand the rigors of continuous operation and extend product lifespan.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Degree of Protection | Front IP00 | Environmental Information | 1SCC301233D0201 |
Pollution Degree | 3 | Product Net Width | 254.5 mm |
Product Net Height | 306 mm | Product Net Depth / Length | 167 mm |
Product Net Weight | 19.7 kg | Conventional Free-air Thermal Current (Ith) | Π= 40 °C 1000 A |
Conventional Thermal Current (Ithe) | Fully Enclosed 1000 A | Degree of Protection | Front IP00 |
Distance Between Phases | Standard | Fourth Pole Position | Right Side |
Fourth Pole Type | Switched - Simultaneous Function | Handle Color | Black |
Handle Type | Handle and shaft included | Lock Type | Yes |
Mechanical Durability | 6000 | Mounting Type | Base mounting |
Number of Poles | 4P | Operating Mode | Front operated |
Pollution Degree | 3 | Position of Line Terminals | Top In - Bottom Out Bottom In - Top Out |
Power Loss | at Rated Operating Conditions per Pole 19 W | Rated Impulse Withstand Voltage (Uimp) | 12 kV |
Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V | Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 1000 A (500 V) 1000 A (690 V) 1000 A |
Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 1000 A (500 V) 1000 A (690 V) 1000 A | Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 1000 A (500 V) 1000 A (690 V) 1000 A |
Rated Operational Power AC-23A (Pe) | (400 ... 415 V) 560 kW (500 V) 710 kW (690 V) 1000 kW | Rated Operational Voltage | Main Circuit 1000 V |
Rated Short-Circuit Making Capacity (Icm) | (690 V) 92 kA | Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 50 kA |
Special Functions | No | Standards | IEC 60947-3 |
Switches Operating Mechanism | Mechanism Between the Poles 13 (Between the Poles) | Terminal Type | Lug terminals |
Tightening Torque | acc. IEC 60947-1 50 ⦠75 N·m | Tightening Torque | acc. IEC 60947-1 50 ⦠75 N·m |
Object Classification Code | Q | ETIM 8 | EC000216 - Switch disconnector |
ETIM 9 | EC000216 - Switch disconnector (low voltage) | eClass | V11.1 : 27371403 |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Manufacturer ID | 1SCA105723R1001 |
Specifications may be subject to change without notice
