Product Model

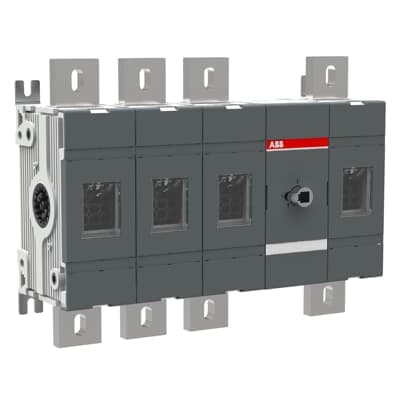

OT1000E31
Selling Points
- 1High thermal current rating up to 1000 A.
- 2Front-operated, base-mounted design for easy access.
- 3Customizable mounting options for flexible installation.
- 4Compatible with a wide range of voltages (380-415 V, 500 V, 690 V).
- 5Robust construction with IP00 degree of protection.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Degree of Protection | Front IP00 | Environmental Information | 1SCC301233D0201 |
Pollution Degree | 3 | Product Net Width | 414.5 mm |
Product Net Height | 306 mm | Product Net Depth / Length | 145.5 mm |
Product Net Weight | 18.8 kg | Conventional Free-air Thermal Current (Ith) | Π= 40 °C 1000 A |
Conventional Thermal Current (Ithe) | Fully Enclosed 1000 A | Degree of Protection | Front IP00 |
Distance Between Phases | Standard | Fourth Pole Position | Right Side |
Fourth Pole Type | Switched - Simultaneous Function | Handle Type | Handle and shaft not included |
Lock Type | No | Mechanical Durability | 6000 |
Mounting Type | Base mounting | Number of Poles | 4P |
Operating Mode | Front operated | Pollution Degree | 3 |
Position of Line Terminals | Top In - Bottom Out Bottom In - Top Out | Power Loss | at Rated Operating Conditions per Pole 19 W |
Rated Impulse Withstand Voltage (Uimp) | 12 kV | Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 1000 A (500 V) 1000 A (690 V) 1000 A | Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 1000 A (500 V) 1000 A (690 V) 1000 A |
Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 1000 A (500 V) 1000 A (690 V) 1000 A | Rated Operational Power AC-23A (Pe) | (400 ... 415 V) 560 kW (500 V) 710 kW (690 V) 1000 kW |
Rated Operational Voltage | Main Circuit 1000 V | Rated Short-Circuit Making Capacity (Icm) | (690 V) 92 kA |
Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 50 kA | Special Functions | No |
Standards | IEC 60947-3 | Switches Operating Mechanism | Mechanism Between the Poles 31 (Between the Poles) |
Terminal Type | Lug terminals | Tightening Torque | acc. IEC 60947-1 50 ⦠75 N·m |
Tightening Torque | acc. IEC 60947-1 50 ⦠75 N·m | Object Classification Code | Q |
ETIM 8 | EC000216 - Switch disconnector | ETIM 9 | EC000216 - Switch disconnector (low voltage) |
eClass | V11.1 : 27371403 | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
Manufacturer ID | 1SCA106348R1001 |
Specifications may be subject to change without notice
