ABBIsolating switch
Product Model

OT1200U02

Manufacturer

ABB

Category

Isolating switch

Product ID

73711

In Stock
Last updated: 2025/4/18
View Specifications

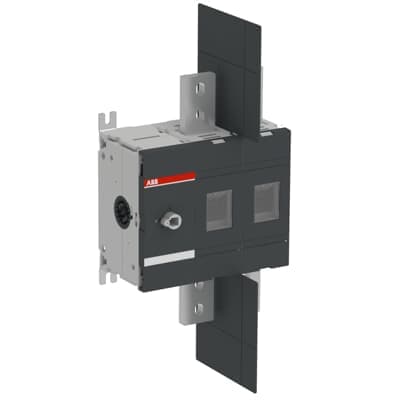

ABB OT1200U02

Selling Points

  • 1High Amperage Rating: 1200A for heavy-duty applications.
  • 2Compact Design: 372 mm H x 255 mm W x 127 mm D dimensions for space-saving installations.
  • 3Quick-Make/Quick-Break Mechanism: Fast and reliable operation with self-cleaning contacts.
  • 4Enhanced Safety Features: Visible blades and track-resistant material for reduced risk of flash-over.
  • 5Versatile Mounting Options: Din rail, door, or base mounting for flexible installation orientations.
Product Details
OT1200U02
ABB

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Degree of Protection
Front IP00
Environmental Information
1SCC301233D0201
Pollution Degree
3
Product Net Width
254.5 mm
Product Net Height
372 mm
Product Net Depth / Length
145.5 mm
Product Net Weight
12.1 kg
Degree of Protection
Front IP00
Distance Between Phases
Standard
Handle Type
Handle and shaft not included
Lock Type
No
Mechanical Durability
6000
Mounting Type
Base mounting
Number of Poles
2
Operating Mode
Front operated
Pollution Degree
3
Power Loss
at Rated Operating Conditions per Pole 48 W
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 1600 A (500 V) 1600 A (690 V) 1600 A
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm)
(690 V) 110 kA
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 50 kA
Special Functions
No
Standards
IEC 60947-3 / UL 98 / CSA C22.2 NO.4
Switches Operating Mechanism
Mechanism at the End of the Switch 02 (Left Side)
Terminal Type
Lug terminals
Tightening Torque
acc. IEC 60947-1 56.5 N·m
Maximum Operating Voltage UL/CSA
600 V
Ampere Rating
1200 A
Tightening Torque
acc. IEC 60947-1 56.5 N·m
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
UNSPSC
39122233
IDEA Granular Category Code (IGCC)
5290 >> Disconnect switch
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Manufacturer ID
1SCA105796R1001

Specifications may be subject to change without notice
