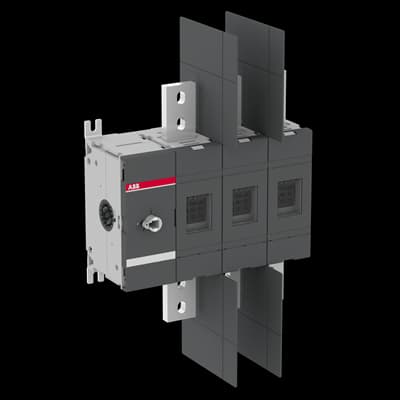

Product Model
OT1200U03-800
Selling Points
- 1Modular construction for easy installation and flexibility.
- 2Superior short circuit protection with a rating of 110 kA.
- 3Enhanced safety features including finger-proof dead front construction and terminal shrouds.
- 4Clear position indication and door interlock for secure operation.
- 5Compact design with a small physical footprint, ideal for space-saving installations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Environmental Information | 1SCC301233D0201 | Product Net Width | 334.5 mm |
Product Net Height | 372 mm | Product Net Depth / Length | 145.9 mm |
Product Net Weight | 17.2 kg | Number of Poles | 3P |
Power Loss | at Rated Operating Conditions per Pole 48 W | Rated Impulse Withstand Voltage (Uimp) | 12 kV |
Rated Operational Voltage | Main Circuit 1000 V | Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 50 kA |
Standards | UL 98 / CSA C22.2 NO.4 | Maximum Operating Voltage UL/CSA | 800 V |
Ampere Rating | 800 A | Object Classification Code | Q |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Manufacturer ID | 1SCA161436R1001 |
Specifications may be subject to change without notice
