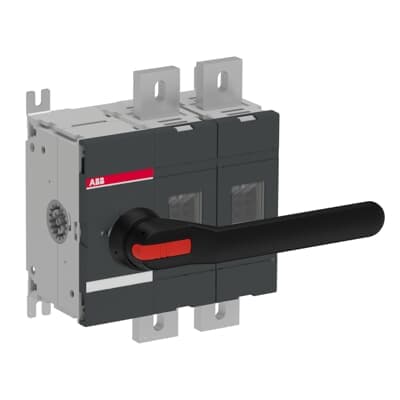

Product Model
OT1250E02K
Selling Points
- 1Reliable power distribution for industrial applications.
- 2Smart design for enhanced operational efficiency.
- 3High withstand voltage (1000 V) and rated insulation voltage (1000 V).
- 4Rated operational voltage (690 V) and high current rating (110 kA).
- 5Ensures safety with smart disconnection capabilities.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Degree of Protection | Front IP00 | Environmental Information | 1SCC301233D0201 |
Pollution Degree | 3 | Product Net Width | 254.5 mm |
Product Net Height | 306 mm | Product Net Depth / Length | 167 mm |
Product Net Weight | 1.4 kg | Conventional Thermal Current (Ithe) | Fully Enclosed 1250 A |
Degree of Protection | Front IP00 | Handle Color | Black |
Handle Type | Handle and shaft not included | Lock Type | Yes |
Mechanical Durability | 6000 | Number of Poles | 2P |
Pollution Degree | 3 | Power Loss | at Rated Operating Conditions per Pole 29 W |
Rated Impulse Withstand Voltage (Uimp) | 12 kV | Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 1250 A | Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 1250 A (500 V) 1250 A (690 V) 1250 A |
Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 1250 A (500 V) 1250 A (690 V) 1250 A | Rated Operational Power AC-23A (Pe) | (400 ... 415 V) 710 kW (500 V) 900 kW (690 V) 1200 kW |
Rated Operational Voltage | Main Circuit 1000 V | Rated Short-Circuit Making Capacity (Icm) | (690 V) 110 kA |
Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 50 kA | Standards | IEC 60947-3 |
Terminal Type | Lug terminals | Tightening Torque | acc. IEC 60947-1 50 ⦠75 N·m |
Tightening Torque | acc. IEC 60947-1 50 ⦠75 N·m | Object Classification Code | Q |
ETIM 8 | EC000216 - Switch disconnector | ETIM 9 | EC000216 - Switch disconnector (low voltage) |
eClass | V11.1 : 27371403 | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
Manufacturer ID | 1SCA122711R1001 |
