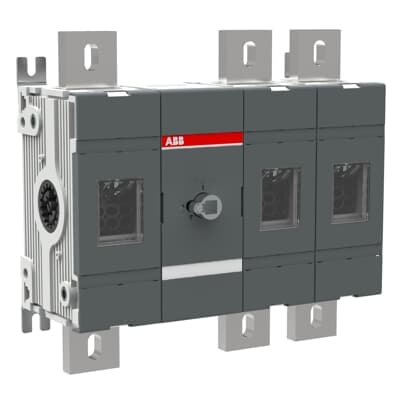

Product Model
OT1250E12
Selling Points
- 13-pole, front operated, base mounted switch-disconnector with terminal bolt kit included.
- 2Rated for 1250 A at 380-415 V, 500 V, and 690 V.
- 3Meets IEC/EN 60664-1 standards with a rated insulation voltage of 1000 V.
- 4Offers a high mechanical durability with a tightening torque of 50-75 N·m.
- 5Compliant with RoHS and REACH regulations, ensuring environmental safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Degree of Protection | Front IP00 | Environmental Information | 1SCC301233D0201 |
Pollution Degree | 3 | Product Net Width | 334.5 mm |
Product Net Height | 306 mm | Product Net Depth / Length | 145.5 mm |
Product Net Weight | 14.7 kg | Conventional Free-air Thermal Current (Ith) | Π= 40 °C 1250 A |
Conventional Thermal Current (Ithe) | Fully Enclosed 1250 A | Degree of Protection | Front IP00 |
Distance Between Phases | Standard | Handle Type | Handle and shaft not included |
Lock Type | No | Mechanical Durability | 6000 |
Mounting Type | Base mounting | Number of Poles | 3P |
Operating Mode | Front operated | Pollution Degree | 3 |
Position of Line Terminals | Top In - Bottom Out Bottom In - Top Out | Power Loss | at Rated Operating Conditions per Pole 29 W |
Rated Impulse Withstand Voltage (Uimp) | 12 kV | Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 1250 A (500 V) 1250 A (690 V) 1250 A | Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 1250 A (500 V) 1250 A (690 V) 1250 A |
Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 1250 A (500 V) 1250 A (690 V) 1250 A | Rated Operational Power AC-23A (Pe) | (400 ... 415 V) 710 kW (500 V) 900 kW (690 V) 1200 kW |
Rated Operational Voltage | Main Circuit 1000 V | Rated Short-Circuit Making Capacity (Icm) | (690 V) 110 kA |
Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 50 kA | Special Functions | No |
Standards | IEC 60947-3 | Switches Operating Mechanism | Mechanism Between the Poles 12 (Between the Poles) |
Terminal Type | Lug terminals | Tightening Torque | acc. IEC 60947-1 50 ⦠75 N·m |
Tightening Torque | acc. IEC 60947-1 50 ⦠75 N·m | Object Classification Code | Q |
ETIM 8 | EC000216 - Switch disconnector | ETIM 9 | EC000216 - Switch disconnector (low voltage) |
eClass | V11.1 : 27371403 | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
E-Number (Finland) | 3661700 | Manufacturer ID | 1SCA101552R1001 |
Specifications may be subject to change without notice
