Product Model

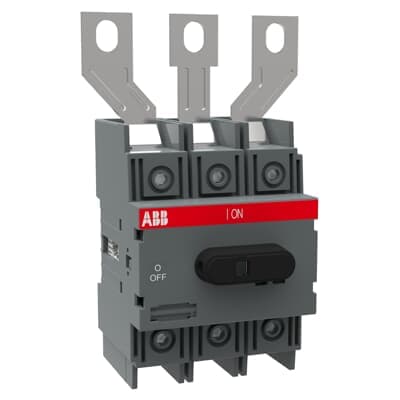

OT125FLA3
Selling Points
- 1Compliant with IEC Standards: Meets rigorous IEC standards for reliability and safety.
- 2Compact Design: Compact dimensions (90x154x63 mm) for efficient installation.
- 3High Current Rating: Supports up to 125 A operational current, suitable for various applications.
- 4Front Operated Mechanism: Easy front operation ensures quick and safe switching.
- 5Extended Terminal Options: Includes extended terminals on top side for enhanced connectivity options.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Degree of Protection | Front IP20 | Environmental Information | 1SCC301264D0201 |
Pollution Degree | 3 | Product Net Width | 90 mm |
Product Net Height | 154 mm | Product Net Depth / Length | 74 mm |
Product Net Weight | 0.43 kg | Cable Cross-Section | Cu 10 ... 70 mm² |
Conventional Free-air Thermal Current (Ith) | Π= 40 °C 125 A | Conventional Thermal Current (Ithe) | Fully Enclosed 125 A |
Degree of Protection | Front IP20 | Distance Between Phases | Standard |
Handle Type | Knob Handle and shaft not included | Lock Type | No |
Mechanical Durability | 20000 | Mounting Type | Base mounting |
Number of Poles | 3P | Operating Mode | Front operated |
Pollution Degree | 3 | Position of Line Terminals | Top In - Bottom Out Bottom In - Top Out |
Power Loss | at Rated Operating Conditions per Pole 6.3 W | Rated Impulse Withstand Voltage (Uimp) | 8 kV |
Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 750 V | Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 125 A (500 V) 125 A (690 V) 125 A |
Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 125 A (500 V) 125 A (690 V) 125 A | Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 90 A (500 V) 70 A (690 V) 50 A |
Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 22 kW (400 ... 415 V) 45 kW (500 V) 45 kW (690 V) 45 kW | Rated Operational Voltage | Main Circuit 750 V |
Rated Short-Circuit Making Capacity (Icm) | (690 V) 3.6 kA | Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 2.5 kA |
Special Functions | No | Standards | IEC 60947-3 |
Switches Operating Mechanism | Mechanism on Top of the Switch | Terminal Type | Screw Terminals |
Tightening Torque | acc. IEC 60947-1 6 N·m | Tightening Torque | acc. IEC 60947-1 6 N·m |
Object Classification Code | Q | ETIM 8 | EC000216 - Switch disconnector |
ETIM 9 | EC000216 - Switch disconnector (low voltage) | eClass | V11.1 : 27371403 |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | E-Number (Finland) | 3600160 |
E-Number (Norway) | 4363503 | Manufacturer ID | 1SCA114832R1001 |
Specifications may be subject to change without notice
