Product Model

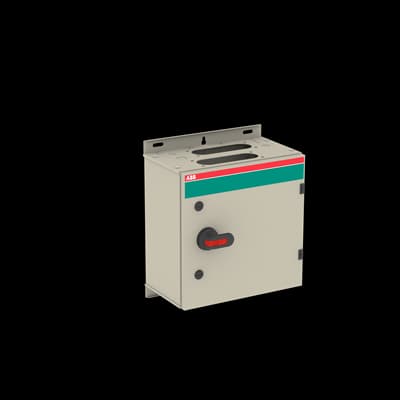

OT125GLCC6TZ
Selling Points
- 1Designed to withstand outdoor UV light, ensuring long-lasting performance.
- 2Equipped with an inbuilt gas pressure relief function for enhanced user safety.
- 3Features padlockable handles for secure operation and tamper-evident design.
- 4Offers high ingress protection (IP65) for use in harsh environments.
- 5Constructed with a galvanized steel enclosure for durability and corrosion resistance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Degree of Protection | acc. to IEC 60529 IP65 | Pollution Degree | 3 |
Product Net Width | 400 mm | Product Net Height | 400 mm |
Product Net Depth / Length | 230 mm | Product Net Weight | 16.4 kg |
Cable Cross-Section | 10 ... 70 mm² | Cable Entry Position | Top/Bottom |
Cable Outlets Per Side | 2xC-flange / 2xC-flange, Knock-outs: 10mm, 12.5mm, 20.5mm, 25.5mm, 32.5mm | Connecting Capacity Main Circuit | Screw Clamp 10 ... 70 mm² Screw Clamp / PE Terminal 4pc,10 ... 70 mm² |
Conventional Thermal Current (Ithe) | Fully Enclosed 125 A | Degree of Protection | acc. to IEC 60529 IP65 |
Enclosure Material | Steel sheet | Enclosure Type | MSC |
Handle Color | Black | Handle Type | Pistol handle |
Impact Resistance Rating | Housing IK09 | Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC |
Mounted Auxiliary Contacts | 2 NO, 2 NC | Neutral Type | No neutral terminal |
Number of Auxiliary Contacts NC | 2 | Number of Auxiliary Contacts NO | 2 |
Number of Poles | 6P | Pollution Degree | 3 |
Position of Line Terminals | Top In - Bottom Out | Rated Conditional Short-Circuit Current (Inc) | 24 kA |
Rated Impulse Withstand Voltage (Uimp) | 12 kV | Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 125 A (500 V) 125 A (690 V) 125 A | Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 125 A (500 V) 125 A (690 V) 125 A |
Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 55 kW (500 V) 75 kW (690 V) 110 kW | Rated Operational Voltage | Main Circuit 1000 V |
Rated Short-Circuit Making Capacity (Icm) | (690 V AC) 12 kA | Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 4 kA |
Recommended Screw Driver | Main Circuit Hexagon 4 | Standards | IEC 60947-1, -3 |
Terminal Type | Screw Terminals | Tightening Torque | Main Circuit 6 N·m |
Wire Stripping Length | 20 mm | Wire Stripping Length | 20 mm |
Recommended Screw Driver | Main Circuit Hexagon 4 | Tightening Torque | Main Circuit 6 N·m |
Object Classification Code | Q | ETIM 8 | EC000216 - Switch disconnector |
ETIM 9 | EC000216 - Switch disconnector (low voltage) | UNSPSC | 39122205 |
IDEA Granular Category Code (IGCC) | 5166 >> Safety switch | eClass | V11.1 : 27371403 |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | E-Number (Finland) | 3640417 |
E-Number (Sweden) | 3134581 | Manufacturer ID | 1SCA148477R1001 |
Specifications may be subject to change without notice
