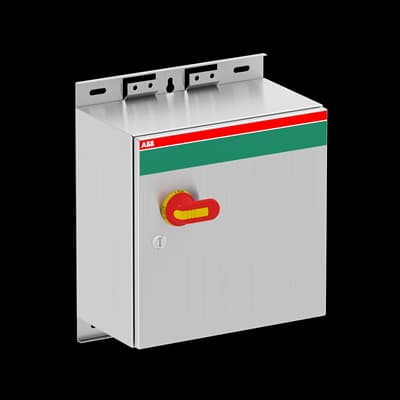

Product Model
OT125GSUM3AZ
Selling Points
- 1High Amperage Rating: 125 A for robust electrical handling.
- 2Versatile Voltage Rating: 600 VAC for diverse industrial applications.
- 3Efficient Operation: Front-operated non-fusible open design for quick make and brake mechanism.
- 4Durable Construction: Fully enclosed with 8 kV rated impulse withstand voltage.
- 5Easy Installation: Base mount with screw terminals for simple setup and maintenance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Degree of Protection | acc. to IEC 60529 IP65 | Pollution Degree | 3 |
Product Net Width | 400 mm | Product Net Height | 400 mm |
Product Net Depth / Length | 230 mm | Product Net Weight | 14.8 kg |
Cable Cross-Section | 10 ... 70 mm² | Cable Entry Position | Bottom/Bottom |
Cable Outlets Per Side | Blank / 2xø50.5+ø20.5 | Connecting Capacity Main Circuit | Screw Clamp 10 ... 70 mm² Screw Clamp / PE Terminal 2pc,10 ... 70 mm² |
Conventional Thermal Current (Ithe) | Fully Enclosed 125 A | Degree of Protection | acc. to IEC 60529 IP65 |
Enclosure Material | Stainless steel | Enclosure Type | Ensto_R |
Handle Color | Red / Yellow | Handle Type | Pistol handle |
Impact Resistance Rating | Housing IK09 | Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC |
Mechanical Durability | 20000 | Mounted Auxiliary Contacts | 1 NO, 1 NC |
Neutral Type | No neutral terminal | Number of Auxiliary Contacts NC | 1 |
Number of Auxiliary Contacts NO | 1 | Number of Poles | 3P |
Pollution Degree | 3 | Position of Line Terminals | Bottom In - Bottom Out |
Power Loss | at Rated Operating Conditions per Pole 6.3 W | Rated Conditional Short-Circuit Current (Inc) | 24 kA |
Rated Impulse Withstand Voltage (Uimp) | 12 kV | Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 125 A (500 V) 125 A (690 V) 125 A | Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 125 A (500 V) 125 A (690 V) 125 A |
Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 55 kW (500 V) 75 kW (690 V) 110 kW | Rated Operational Voltage | Main Circuit 1000 V |
Rated Short-Circuit Making Capacity (Icm) | (690 V AC) 12 kA | Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 4 kA |
Recommended Screw Driver | Main Circuit Hexagon 4 | Special Functions | EMC |
Standards | IEC 60947-1, -3 | Switches Operating Mechanism | On the Front of the Switch |
Terminal Type | Screw Terminals | Tightening Torque | Main Circuit 6 N·m |
Wire Stripping Length | 20 mm | Wire Stripping Length | 20 mm |
Recommended Screw Driver | Main Circuit Hexagon 4 | Tightening Torque | Main Circuit 6 N·m |
Object Classification Code | Q | ETIM 8 | EC000216 - Switch disconnector |
ETIM 9 | EC000216 - Switch disconnector (low voltage) | UNSPSC | 39122205 |
IDEA Granular Category Code (IGCC) | 5166 >> Safety switch | eClass | V11.1 : 27371403 |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Manufacturer ID | 1SCA161472R1001 |
Specifications may be subject to change without notice
