Product Model

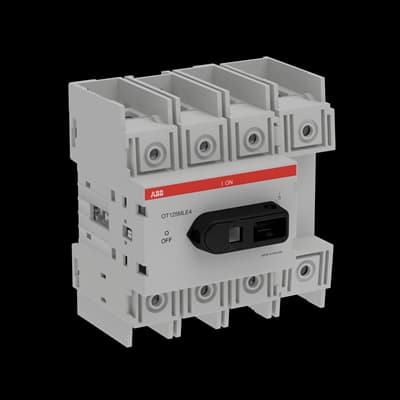

OT125MLE4
Selling Points
- 1High Performance: The OT125MLE4 switch lever operates at 37 kW with a rated permanent current of 80 A, ensuring efficient power handling.
- 2Reliable Operation: With a rated operation power at AC-3, 400 V of 37 kW, this switch lever provides reliable performance in demanding electrical environments.
- 3Versatile Installation: Suitable for floor mounting, distribution board installation, and intermediate mounting, offering flexibility in various electrical setups.
- 4Durable Design: Constructed with a degree of protection (IP) of IP20 on the front side, ensuring protection against solid particles and water.
- 5Brand Trust: Manufactured by ABB, a renowned brand in electrical solutions, providing trust and reliability in every product.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Degree of Protection | Front IP20 | Environmental Information | 1SCC301264D0201 |
Pollution Degree | 3 | Product Net Width | 100 mm |
Product Net Height | 96.5 mm | Product Net Depth / Length | 74 mm |
Product Net Weight | 0.49 kg | Cable Cross-Section | Cu 10 ... 70 mm² |
Conventional Free-air Thermal Current (Ith) | Π= 40 °C 125 A | Conventional Thermal Current (Ithe) | Fully Enclosed 125 A |
Degree of Protection | Front IP20 | Distance Between Phases | Standard |
Fourth Pole Position | Right Side | Fourth Pole Type | Switched - Simultaneous Function |
Handle Type | Handle and shaft not included | Lock Type | No |
Mechanical Durability | 20000 | Mounting Type | Base mounting |
Number of Poles | 4P | Operating Mode | Front operated |
Pollution Degree | 3 | Power Loss | at Rated Operating Conditions per Pole 6.3 W |
Rated Impulse Withstand Voltage (Uimp) | 8 kV | Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 750 V |
Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 125 A (500 V) 125 A (690 V) 125 A | Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 125 A (500 V) 125 A (690 V) 125 A |
Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 90 A (500 V) 70 A (690 V) 50 A | Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 22 kW (400 ... 415 V) 45 kW (500 V) 45 kW (690 V) 45 kW |
Rated Operational Voltage | Main Circuit 750 V | Rated Short-Circuit Making Capacity (Icm) | (690 V) 3.6 kA |
Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 2.5 kA | Special Functions | No |
Standards | IEC 60947-3 | Switches Operating Mechanism | Mechanism on Top of the Switch |
Terminal Type | Screw Terminals | Tightening Torque | acc. IEC 60947-1 6 N·m |
Tightening Torque | acc. IEC 60947-1 6 N·m | Object Classification Code | Q |
ETIM 8 | EC000216 - Switch disconnector | ETIM 9 | EC000216 - Switch disconnector (low voltage) |
eClass | V11.1 : 27371403 | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
E-Number (Finland) | 3601252 | Manufacturer ID | 1SCA022757R0320 |
